• Insulgrip style body design
• Accepts up to #12/3 AWG SO cable
• Industry standard mating
• Quick Release Latch
• Multiple strain relief collets to accommodate wide range of cable

• Insulgrip style body design
• Accepts up to #12/3 AWG SO cable
• Industry standard mating
• Quick Release Latch
• Multiple strain relief collets to accommodate wide range of cable

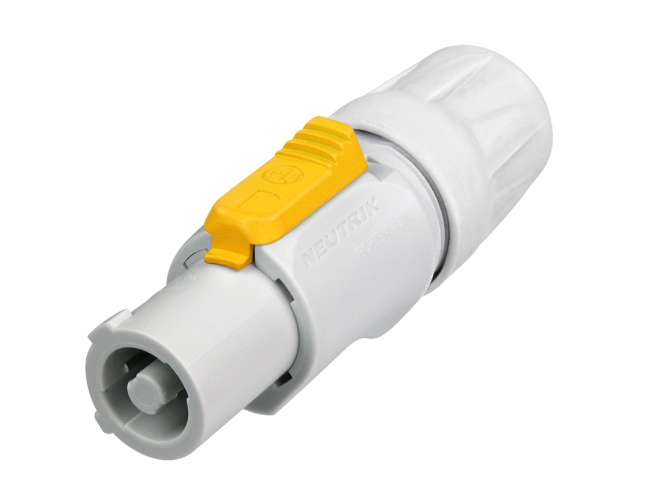

The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

Features & Benefits

• Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
• Fast and easy twist lock latching system
• Extremely robust and reliable
• Ergonomic design
• Unique Neutrik chuck type strain relief
• Improved kink protection by two-component bushing
• New bushing design avoids unintended opening
• UL, cUL recognized components
  VDE certified
  SEV approved
• Branded with unique hologram - guarantees genuine and authentic Neutrik product

The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.

Features & Benefits

• IEC EN 60320-1 / UL 60320-1 / CSA  C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1.
• Ergonomic design with slip-proof two-component molded housing.
• Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of inter-mating.
• Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm.
• Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing.
• Superior NEUTRIK quality standard, extremely robust and reliable.
• Easy and reliable twist lock system Improved kink protection by two-component bushing.
