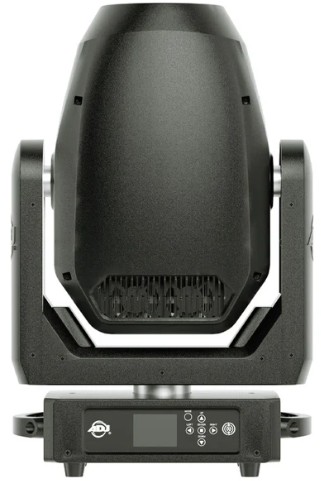

ADJ Protege XM

LED-Powered Moving Head Spot Luminaire
Item #:PRO500
Available: Special Order/Direct Ship
Delivering output of up to 16,000 lumens and an extensive feature set, the Protégé XM is a versatile LED-powered moving head spot luminaire. Its 350W LED engine has a native color temperature of 8000K and its precision-engineered optics deliver crisp GOBO projections and striking aerial effects with a beam angle variable between 3.8° and 44°. The fixture is packed with useful features, including CMY color mixing alongside two color wheels, two rotating GOBO wheels, two prisms, two frost filters, and an animation wheel. It offers extensive control options for integration into any professional lighting system, including support for sACN and Art-Net as well as onboard Aria X2 wireless DMX and remote fixture management.
2299.99
Each
Quantity:
Quantity Price
1.0 2299.99
Offering a powerful output of up to 16,000 lumens, the ADJ Protégé XM is a professional-grade LED-powered moving head spot designed to provide lighting designers with exceptional brightness, versatility, and creative potential from a relatively compact fixture. At its core is a 350-watt white LED engine with a native color temperature of 8000 K, producing an intense, punchy beam that cuts through in even the most demanding environments. Its precision-engineered optics deliver stunning visual clarity and crisp projections, while a motorized zoom ranging from 3.8° to 44° allows seamless transitions between tight beams and a wide spot.
Specifications
Type: 350W White LED Moving Head Spot
SOURCE:
350W White LED Engine
Color Temperature: 8000K (+/-200k)
20,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA:
16,000 Lumens
CRI: 70
COLOR:
Disc-Based CMY Color Mixing
2x Color Wheels
9 colors per color wheel
Color Wheel 1: Red, Blue, Green, Orange, Quad Color，Lime, Amber, Magenta, Congo Blue
Color Wheel 2: Dark Red, Midnight Blue, Light Turquoise, Pink, UV, Quad Color, High CRI, CTO 2700K, CTC (Color Temp. Correction)
GOBOS:
2x Rotating Gobo Wheels: Each with 7 Interchangeable, glass gobos (OD: 23mm, Image: 14.8mm)
EFFECTS:
Motorized Zoom: 3.7° to 43°
2x Prisms: 1x 6 Facet Linear & 1x 6 Facet Circular (Overlay Capable)
2x Frost Filters- 1 x Light Frost Filter and 1 x Heavy Frost Filter
Animation Wheel on Movable Arm
Motorized Focus
1Hz ~10Hz Strobe Rate (Electronic)
CONTROL / CONNECTIONS:
(3) DMX Channel Modes (Basic / Standard / Extended)
DMX, sACN, ArtNet and RDM
Aria X2 Wireless Management System
NFC System
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
RJ45 In/Thru Ports
5 pin XLR DMX In/Out
IP65 Locking Power In/Out
PAN / TILT:
Pan: 540/630° and separate 360° Continuous Pan Rotation
Tilt: 270°
Pan/Tilt Locks
3 Phase Motors
SIZE / WEIGHT:
Length: 14.49" (368mm)
Width: 9.76" (248mm)
Vertical Height: 22.3” (566.5mm)
Weight: 48.5 lbs. (22kg)
ELECTRICAL / THERMAL:
AC 100-240V - 50/60Hz
Max Power Consumption: 675W (5.9 Amps @ 120V., 3.07 Amps @ 230V.)
Power Link: 2 unit @120V., 5 units @ 230V.
Max ambient temperature: -13°F to 113°F (-25°C to 45°C)
Max housing temperature: ?°F (?°C)
TECHNICAL DATA:
DB Rating @ 3ft.: ?dB
BTU: ?
BTU/H: ?
APPROVALS / RATINGS:
CE
FCC
cETLus (Pending)
IP20
INCLUDED ACCESSORIES:
(1) Outdoor Locking Power cable (6.5ft.)
(2) Omega brackets (107mm)
(1) Safety Cable, 3mm (1.97ft.)
