1 - 12 of 23 ▶|
View:

Description
Price
Quantity

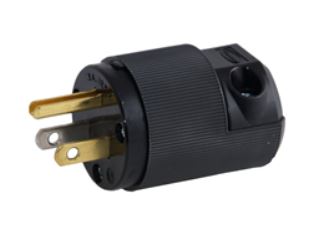

Hubbell HBL5266CM2

5-15P, Straight Blade (Edison) Plug, Black

2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Black Nylon

Product Specifications
 NEMA Configuration
 Body Style Straight
 Standard NEMA
 Amperage 15A
 Voltage 125V
 Poles and Wires 2 Pole, 3-Wire Grounding
 Hospital Grade ? No
 Plug/Connector Grade Insulgrip
 Color
 NEMA No. 5-15P
 Horsepower 0.5
 Cord Dia. .230"-.720" (5.8-18.3)
 Type 2 Pole, 3 Wire, Grounding
 Rating 15A,125V
 Certification UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
 IP Suitability IP20
 Housing Material Nylon-Black
 Blade Holder Material Nylon-Natural
 Retainer Material Polycarbonate-Clear
 Cord Clamp Material Nylon-Natural
 Contact Blades Material .060" (1.5) Brass
 Ground Contact Blade Material .040" (1.0) Copper Alloy
 Terminal Screw Material #8-32 Brass /Ni plated for neutral
 Ground Screw Material #8-32 Brass, Multiple Drive (Green)
 Dielectric Voltage Withstands 2,000V minimum.
 Current Interrupting Certified for current interrupting at full rated current.
 Temperature Rise Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
 Terminal Identification Terminals identified in accordance with UL498 (Brass, White, Green).
 Terminal Accommodation #18-#10 AWG copper stranded conductor
 Product Identification Ratings are a permanent part of the device.
 Flammability UL 94 HB or better.
 Operating Temperatures Maximum continuous 75°C, minimum -40°C (w/o impact).
 UPC Number 783585173009
 Weight in LBs 0.350
Item#:
5266C BLK
Available:
In Stock
You must be logged in to order this item. Log in here

Hubbell HBL5266C

5-15P, Straight Blade (Edison) Plug

2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Black and White Nylon

Product Specifications
 NEMA Configuration
 Body Style Straight
 Standard NEMA
 Amperage 15A
 Voltage 125V
 Poles and Wires 2 Pole, 3-Wire Grounding
 Hospital Grade ? No
 Plug/Connector Grade Insulgrip
 Color
 NEMA No. 5-15P
 Horsepower 0.5
 Cord Dia. .230"-.720" (5.8-18.3)
 Type 2 Pole, 3 Wire, Grounding
 Rating 15A,125V
 Certification UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
 IP Suitability IP20
 Housing Material Nylon-Black
 Blade Holder Material Nylon-Natural
 Retainer Material Polycarbonate-Clear
 Cord Clamp Material Nylon-Natural
 Contact Blades Material .060" (1.5) Brass
 Ground Contact Blade Material .040" (1.0) Copper Alloy
 Terminal Screw Material #8-32 Brass /Ni plated for neutral
 Ground Screw Material #8-32 Brass, Multiple Drive (Green)
 Dielectric Voltage Withstands 2,000V minimum.
 Current Interrupting Certified for current interrupting at full rated current.
 Temperature Rise Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
 Terminal Identification Terminals identified in accordance with UL498 (Brass, White, Green).
 Terminal Accommodation #18-#10 AWG copper stranded conductor
 Product Identification Ratings are a permanent part of the device.
 Flammability UL 94 HB or better.
 Operating Temperatures Maximum continuous 75°C, minimum -40°C (w/o impact).
 UPC Number 783585173009
 Weight in LBs 0.350
Item#:
5266C HBL
Available:
In Stock
You must be logged in to order this item. Log in here

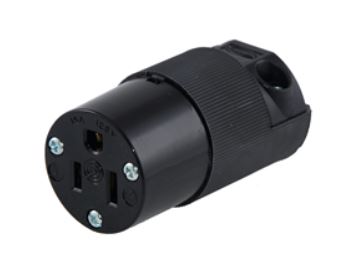

Hubbell HBL5269CM2

5-15R, Straight Blade (Edison) Connector, Black


2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Black Nylon

Product Specifications
 NEMA Configuration
 Body Style Straight
 Standard NEMA
 Amperage 15A
 Voltage 125V
 Poles and Wires 2 Pole, 3-Wire Grounding
 Wiring Method Back Wire
 Hospital Grade ? No
 Plug/Connector Grade Insulgrip
 Color
 NEMA No. 5-15R
 Cord Dia. .230"-.720" (5.8-18.3)
 Type 2 Pole, 3 Wire, Grounding
 Rating 15A, 125V
 Certification UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
 IP Suitability IP20
 Housing Material Nylon-Black
 Retainer Material Polycarbonate-Clear
 Cord Clamp Material Nylon-Natural
 Terminal Screw Material #8-32 Brass, Multiple Drive
 Ground Screw Material #8-32 Brass, Multiple Drive (Green)
 Contact Holder Material Nylon-Natural
 Power Contacts Material .040" (1.0) Copper Alloy
 Dielectric Voltage Withstands 2,000V minimum.
 Current Interrupting Certified for current interrupting at full rated current.
 Temperature Rise Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
 Terminal Identification Terminals identified in accordance with UL498 (Brass, White, Green).
 Terminal Accommodation #18-#10 AWG copper stranded conductor
 Product Identification Ratings are a permanent part of the device.
 Flammability UL 94 HB or better.
 Operating Temperatures Maximum continuous 75°C, minimum -40°C (w/o impact).
 UPC Number 783585173252
 Weight in LBs 0.150
Item#:
5269C BLK
Available:
In Stock
You must be logged in to order this item. Log in here

Hubbell HBL5269C

5-15R, Straight Blade (Edison) Connector

2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Black and White Nylon

Product Specifications
 NEMA Configuration
 Body Style Straight
 Standard NEMA
 Amperage 15A
 Voltage 125V
 Poles and Wires 2 Pole, 3-Wire Grounding
 Wiring Method Back Wire
 Hospital Grade ? No
 Plug/Connector Grade Insulgrip
 Color
 NEMA No. 5-15R
 Cord Dia. .230"-.720" (5.8-18.3)
 Type 2 Pole, 3 Wire, Grounding
 Rating 15A, 125V
 Certification UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
 IP Suitability IP20
 Housing Material Nylon-Black
 Retainer Material Polycarbonate-Clear
 Cord Clamp Material Nylon-Natural
 Terminal Screw Material #8-32 Brass, Multiple Drive
 Ground Screw Material #8-32 Brass, Multiple Drive (Green)
 Contact Holder Material Nylon-Natural
 Power Contacts Material .040" (1.0) Copper Alloy
 Dielectric Voltage Withstands 2,000V minimum.
 Current Interrupting Certified for current interrupting at full rated current.
 Temperature Rise Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
 Terminal Identification Terminals identified in accordance with UL498 (Brass, White, Green).
 Terminal Accommodation #18-#10 AWG copper stranded conductor
 Product Identification Ratings are a permanent part of the device.
 Flammability UL 94 HB or better.
 Operating Temperatures Maximum continuous 75°C, minimum -40°C (w/o impact).
 UPC Number 783585173252
 Weight in LBs 0.150
Item#:
5269C HBL
Available:
In Stock
You must be logged in to order this item. Log in here

Hubbell HBL5366C

5-20P, Straight Blade Plug

2-Pole 3-Wire Grounding, 20A 125V, 5-20P, Black and White Nylon

Product Specifications
 NEMA Configuration
 Body Style Straight
 Standard NEMA
 Amperage 20A
 Voltage 125V
 Poles and Wires 2 Pole, 3-Wire Grounding
 Hospital Grade ? No
 Plug/Connector Grade Insulgrip
 Color
 NEMA No. 5-20P
 Horsepower 1
 Cord Dia. .230"-.720" (5.8-18.3)
 Type 2 Pole, 3 Wire, Grounding
 Rating 20A,125V
 Certification UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
 IP Suitability IP20
 Housing Material Nylon-Black
 Blade Holder Material Nylon-Natural
 Retainer Material Polycarbonate-Clear
 Cord Clamp Material Nylon-Natural
 Contact Blades Material .060" (1.5) Brass
 Ground Contact Blade Material .040" (1.0) Copper Alloy
 Terminal Screw Material #8-32 Brass /Ni plated for neutral
 Ground Screw Material #8-32 Brass, Multiple Drive (Green)
 Dielectric Voltage Withstands 2,000V minimum.
 Current Interrupting Certified for current interrupting at full rated current.
 Temperature Rise Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
 Terminal Identification Terminals identified in accordance with UL498 (Brass, White, Green).
 Terminal Accommodation #18-#10 AWG copper stranded conductor
 Product Identification Ratings are a permanent part of the device.
 Flammability UL 94 HB or better.
 Operating Temperatures Maximum continuous 75°C, minimum -40°C (w/o impact).
 UPC Number 783585173955
 Weight in LBs 0.150
Item#:
5366C HBL
Available:
In Stock
You must be logged in to order this item. Log in here

Hubbell HBL5369C

5-20R, Straight Blade Connector

2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Black and White Nylon

Product Specifications
 NEMA Configuration
 Body Style Straight
 Standard NEMA
 Amperage 20A
 Voltage 125V
 Poles and Wires 2 Pole, 3-Wire Grounding
 Wiring Method Back Wire
 Hospital Grade ? No
 Plug/Connector Grade Insulgrip
 Color
 NEMA No. 5-20R
 Cord Dia. .230"-.720" (5.8-18.3)
 Type 2 Pole, 3 Wire, Grounding
 Rating 20A, 125V
 Certification UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
 IP Suitability IP20
 Housing Material Nylon-Black
 Retainer Material Polycarbonate-Clear
 Cord Clamp Material Nylon-Natural
 Terminal Screw Material #8-32 Brass, Multiple Drive
 Ground Screw Material #8-32 Brass, Multiple Drive (Green)
 Contact Holder Material Nylon-Natural
 Power Contacts Material .040" (1.0) Copper Alloy
 Dielectric Voltage Withstands 2,000V minimum.
 Current Interrupting Certified for current interrupting at full rated current.
 Temperature Rise Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
 Terminal Identification Terminals identified in accordance with UL498 (Brass, White, Green).
 Terminal Accommodation #18-#10 AWG copper stranded conductor
 Product Identification Ratings are a permanent part of the device.
 Flammability UL 94 HB or better.
 Operating Temperatures Maximum continuous 75°C, minimum -40°C (w/o impact).
 UPC Number 783585174259
 Weight in LBs 0.150
Item#:
5369C HBL
Available:
Special Order/Direct Ship
You must be logged in to order this item. Log in here

Hubbell HBL5965VBLK

5-15P, Straight Blade (Edison) Valise Plug, Black

2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Black Nylon

Product Specifications
 NEMA Configuration
 Body Style Straight
 Standard NEMA
 Amperage 15A
 Voltage 125V
 Poles and Wires 2 Pole, 3-Wire Grounding
 Hospital Grade ? No
 Plug/Connector Grade Valise
 Color
 Other Available Colors Black, Gray, Yellow, Orange
 NEMA No. 5-15P
 Horsepower 0.5
 Cord Dia. .220"-.660" (5.6-16.8)
 Type 2 Pole, 3 Wire, Grounding
 Rating 15A,125V
 Certification UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
 IP Suitability IP20
 Housing Material Nylon
 Cord Clamp Material Noryl (Polyphenylene Oxide)
 Contact Blades Material .060" (1.5) Brass
 Ground Contact Blade Material .040" (1.0) Brass
 Terminal Screw Material Steel (copper or nickel finish)
 Ground Screw Material Steel (green finish)
 Dielectric Voltage Withstands 2,000V minimum.
 Current Interrupting Certified for current interrupting at full rated current.
 Temperature Rise Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
 Terminal Identification Terminals identified in accordance with UL498 (Brass, White, Green).
 Terminal Accommodation #18-#10 AWG copper stranded conductor
 Product Identification Ratings are a permanent part of the device.
 Flammability UL 94 V2.
 Operating Temperatures Maximum continuous 75°C, minimum -40°C (w/o impact).
 UPC Number 783585013084
 Weight in LBs 0.100
Item#:
5965VBLK
Available:
In Stock
You must be logged in to order this item. Log in here

Hubbell HBL5969VBLK

Straight Blade (Edison) Valise Connector, Black

2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Black Nylon

Product Specifications
 NEMA Configuration
 Body Style Straight
 Standard NEMA
 Amperage 15A
 Voltage 125V
 Poles and Wires 2 Pole, 3-Wire Grounding
 Wiring Method Back Wire
 Hospital Grade ? No
 Plug/Connector Grade Valise
 Color
 NEMA No. 5-15R
 Cord Dia. .220"-.660" (5.6-16.8)
 Type 2 Pole, 3 Wire, Grounding
 Rating 15A, 125V
 Certification UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
 IP Suitability IP20
 Housing Material Nylon
 Cord Clamp Material Noryl
 Terminal Screw Material #8-32 Steel (copper or nickel finish)
 Ground Screw Material #8-32 Steel, (green finish)
 Power Contacts Material .040" (1.0) Phosphor Bronze
 Dielectric Voltage Withstands 2,000V minimum.
 Current Interrupting Certified for current interrupting at full rated current.
 Temperature Rise Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
 Terminal Identification Terminals identified in accordance with UL498 (Brass, White, Green).
 Terminal Accommodation #18-#10 AWG copper stranded conductor
 Product Identification Ratings are a permanent part of the device.
 Flammability UL 94 HB or better.
 Operating Temperatures Maximum continuous 75°C, minimum -40°C (w/o impact).
 UPC Number 783585013275
 Weight in LBs 0.150
Item#:
5969VBLK
Available:
In Stock
You must be logged in to order this item. Log in here

Hubbell H320C

DIRECT SHIP
 Product Type


 IEC Product  Connector
 Standard  IEC 320
 Amperage  20A/16A
 Voltage  250V
 Poles and Wires  2-pole + earth.
 Wiring Method  Terminal Screw
 Color
 Cord Dia.  .275"-.475" (8-12)
 Rating  16A 250V AC for European service; 20A 250V AC for North American service.
 Certification  UL Listed 20A 250V AC-File No. E1706; CSA certified 20A 250V AC-File No. 17337; UL classified to IEC 320, 16A 250V AC-File No. E111246; TUV and VDE certified at 16A 250V AC-File No. 12469 1550 1002.
 IP Suitability  IP20
 Housing Material  Nylon-Black
 Retainer Material  Nylon-Black
 Cord Clamp Material  Nylon-Black
 Contact Blades Material  .040" (1.0) Brass
 Terminal Screw Material  #8-32 Steel (copper or nickel finish)
 Ground Screw Material  #8-32 Steel, (green finish)
 Base Material  Nylon
 Power Contacts Material  .032" (.81) Brass
 Dielectric Voltage  Withstands 2,000V minimum.
 Current Interrupting  Certified for current interrupting at full rated current.
 Temperature Rise  Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
 Terminal Identification  Terminals identified in accordance with UL498 (Brass, White, Green).
 Terminal Accommodation  #16-#12 AWG copper stranded or solid conductor only.
 Product Identification  Ratings are a permanent part of the device.
 Flammability  UL 94 HB or better.
 Operating Temperatures  Maximum continuous 75°C, minimum -40°C (w/o impact).
 UPC Number  783585777108
 Weight in LBs  0.200
Item#:
H320C
Available:
Special Order/Direct Ship
You must be logged in to order this item. Log in here

Hubbell H320P

IEC 320 Devices, Male Plug, 16A 250V
 Product Type


 IEC Product  Plug
 Standard  IEC 320
 Amperage  20A/16A
 Voltage  250V
 Poles and Wires  2-pole + earth.
 Wiring Method  Terminal Screw
 Color
 Cord Dia.  .325"-.475" (8-12)
 Rating  16A 250V AC for European service; 20A 250V AC for North American service.
 Certification  UL Listed 20A 250V AC-File No. E1706; CSA certified 20A 250V AC-File No. 17337; UL classified to IEC 320, 16A 250V AC-File No. E111246; TUV and VDE certified at 16A 250V AC-File No. 12469 1550 1002.
 IP Suitability  IP20
 Housing Material  Nylon-Black
 Retainer Material  Nylon-Black
 Cord Clamp Material  Nylon-Black
 Contact Blades Material  .040" (1.0) Brass
 Terminal Screw Material  Steel
 Ground Screw Material  Steel
 Base Material  Nylon
 Power Contacts Material  .032" (.81) Brass
 Dielectric Voltage  Withstands 2,000V minimum.
 Current Interrupting  Certified for current interrupting at full rated current.
 Temperature Rise  Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
 Terminal Identification  Terminals identified in accordance with UL498 (Brass, White, Green).
 Terminal Accommodation  #16-#12 AWG copper stranded or solid conductor only.
 Product Identification  Ratings are a permanent part of the device.
 Flammability  UL 94 HB or better.
 Operating Temperatures  Maximum continuous 75°C, minimum -40°C (w/o impact).
 UPC Number  783585777061
 Weight in LBs  0.150
Item#:
H320P
Available:
Special Order/Direct Ship
You must be logged in to order this item. Log in here

Hubbell HBL5266CA

5-15P, Straight Blade (Edison) Plug, Angled body

2-Pole 3-Wire Grounding, 15A 125V, 5-15P, 8-position Angle, Black and White Nylon

Product Specifications
 NEMA Configuration
 Body Style Angle
 Standard NEMA
 Amperage 15A
 Voltage 125V
 Poles and Wires 2 Pole, 3-Wire Grounding
 Hospital Grade ? No
 Plug/Connector Grade Insulgrip
 Color
 NEMA No. 5-15P
 Horsepower 0.5
 Cord Dia. .325"-.655" (8.3-16.6)
 Type 2 Pole, 3 Wire, Grounding
 Rating 15A,125V
 Certification UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
 IP Suitability IP20
 Housing Material Nylon-Black
 Blade Holder Material Nylon-Natural
 Retainer Material Polycarbonate-Clear
 Cord Clamp Material Nylon-Natural
 Contact Blades Material .060" (1.5) Brass
 Ground Contact Blade Material .040" (1.0) Copper Alloy
 Terminal Screw Material #8-32 Brass /Ni plated for neutral
 Ground Screw Material #8-32 Brass, Multiple Drive (Green)
 Dielectric Voltage Withstands 2,000V minimum.
 Current Interrupting Certified for current interrupting at full rated current.
 Temperature Rise Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
 Terminal Identification Terminals identified in accordance with UL498 (Brass, White, Green).
 Terminal Accommodation #18-#10 AWG copper stranded or solid conductor only.
 Product Identification Ratings are a permanent part of the device.
 Flammability UL 94 HB or better.
 Operating Temperatures Maximum continuous 75°C, minimum -40°C (w/o impact).
 UPC Number 783585173054
 Weight in LBs 0.150
Item#:
HBL5266CA
Available:
Special Order/Direct Ship
You must be logged in to order this item. Log in here

Hubbell HBL5266EBK

5-15P, Straight Blade (Edison) Plug, Large Cord Grip, Black

2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Black Nylon, Extra Large Cord Grip

Product Specifications
 NEMA Configuration
 Body Style Straight
 Standard NEMA
 Amperage 15A
 Voltage 125V
 Poles and Wires 2 Pole, 3-Wire Grounding
 Hospital Grade ? No
 Plug/Connector Grade Insulgrip
 Color
 NEMA No. 5-15P
 Horsepower 0.5
 Cord Dia. .230"-.720" (5.8-18.3)
 Type 2 Pole, 3 Wire, Grounding
 Rating 15A,125V
 Certification UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280
 IP Suitability IP20
 Housing Material Nylon-Black
 Blade Holder Material Nylon-Natural
 Retainer Material Polycarbonate-Clear
 Cord Clamp Material Nylon-Natural
 Contact Blades Material .060" (1.5) Brass
 Ground Contact Blade Material .040" (1.0) Copper Alloy
 Terminal Screw Material #8-32 Brass /Ni plated for neutral
 Ground Screw Material #8-32 Brass, Multiple Drive (Green)
 Dielectric Voltage Withstands 2,000V minimum.
 Current Interrupting Certified for current interrupting at full rated current.
 Temperature Rise Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
 Terminal Identification Terminals identified in accordance with UL498 (Brass, White, Green).
 Terminal Accommodation #18-#10 AWG copper stranded conductor
 Product Identification Ratings are a permanent part of the device.
 Flammability UL 94 HB or better.
 Operating Temperatures Maximum continuous 75°C, minimum -40°C (w/o impact).
 UPC Number 783585173009
 Weight in LBs 0.350
Item#:
HBL5266EBK
Available:
In Stock
You must be logged in to order this item. Log in here
1 - 12 of 23 ▶|
View:
