The Light Source MQSB
Mega-Quick Pipe Splice for 1-1/2" Sch. 40 Pipe
Install by loosening the set screw one half turn with a quarter inch hex key to open the splice. Align the set screw so that it will be on the side of the pipe joint. (This will give the maximum strength to the joint.) Pinch the bars together at one end, and insert the splice into the first pipe. Then pinch the other ends of splice together and insert the splice into the second pipe. Slide the pipes tightly toward the splice and tighten the set screw securely with the one quarter inch hex key. Bolts should be tightened to about 30 foot pounds.
For 1 1/2" pipe in black or mill, schedule 40 or schedule 80. Also available for 1 1/4" pipe in schedule 40. Weight one pound.
Working Load Limit
600 Pounds Horizontal, Not rated for vertical use
Hardware
1/2-13 socket set screw
Dimensions
8.25" in total length Piece in middle is 1" wide
Weight
15 oz.
For 1 1/2" pipe in black or mill, schedule 40 or schedule 80. Also available for 1 1/4" pipe in schedule 40. Weight one pound.
Working Load Limit
600 Pounds Horizontal, Not rated for vertical use
Hardware
1/2-13 socket set screw
Dimensions
8.25" in total length Piece in middle is 1" wide
Weight
15 oz.
Item#:
MQSB
Available:
Special Order/Direct Ship
13.75
Each

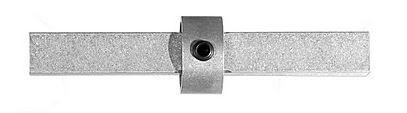

The Light Source MQSM
Mega-Quick Pipe Splice for 1-1/2" Sch. 40 Pipe
Install by loosening the set screw one half turn with a quarter inch hex key to open the splice. Align the set screw so that it will be on the side of the pipe joint. (This will give the maximum strength to the joint.) Pinch the bars together at one end, and insert the splice into the first pipe. Then pinch the other ends of splice together and insert the splice into the second pipe. Slide the pipes tightly toward the splice and tighten the set screw securely with the one quarter inch hex key. Bolts should be tightened to about 30 foot pounds.
For 1 1/2" pipe in black or mill, schedule 40 or schedule 80. Also available for 1 1/4" pipe in schedule 40. Weight one pound.
Working Load Limit
600 Pounds Horizontal, Not rated for vertical use
Hardware
1/2-13 socket set screw
Dimensions
8.25" in total length Piece in middle is 1" wide
Weight
15 oz.
For 1 1/2" pipe in black or mill, schedule 40 or schedule 80. Also available for 1 1/4" pipe in schedule 40. Weight one pound.
Working Load Limit
600 Pounds Horizontal, Not rated for vertical use
Hardware
1/2-13 socket set screw
Dimensions
8.25" in total length Piece in middle is 1" wide
Weight
15 oz.
Item#:
MQSM
Available:
Special Order/Direct Ship
13.41
Each

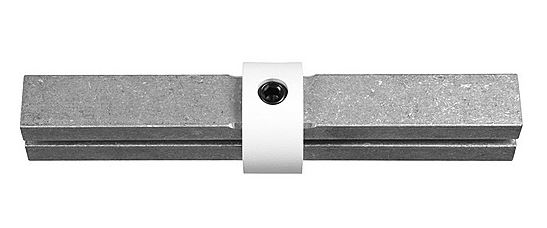

The Light Source MQSW
Mega-Quick Pipe Splice for 1-1/2" Sch. 40 Pipe
Install by loosening the set screw one half turn with a quarter inch hex key to open the splice. Align the set screw so that it will be on the side of the pipe joint. (This will give the maximum strength to the joint.) Pinch the bars together at one end, and insert the splice into the first pipe. Then pinch the other ends of splice together and insert the splice into the second pipe. Slide the pipes tightly toward the splice and tighten the set screw securely with the one quarter inch hex key. Bolts should be tightened to about 30 foot pounds.
For 1 1/2" pipe in black or mill, schedule 40 or schedule 80. Also available for 1 1/4" pipe in schedule 40. Weight one pound.
Working Load Limit
600 Pounds Horizontal, Not rated for vertical use
Hardware
1/2-13 socket set screw
Dimensions
8.25" in total length Piece in middle is 1" wide
Weight
15 oz.
For 1 1/2" pipe in black or mill, schedule 40 or schedule 80. Also available for 1 1/4" pipe in schedule 40. Weight one pound.
Working Load Limit
600 Pounds Horizontal, Not rated for vertical use
Hardware
1/2-13 socket set screw
Dimensions
8.25" in total length Piece in middle is 1" wide
Weight
15 oz.
Item#:
MQSW
Available:
Special Order/Direct Ship
14.44
Each
The Light Source MBAT-TRH.375
Threaded Rod Hanger for Mega-Batten Clamp .375"
The Threaded Rod Hanger for the Mega-Batten Clamp is available in a .375 inch-16 TPI and a .500 inch-13 TPI.
Working Load Limit
1250 lbs.
Working Load Limit
1250 lbs.
Item#:
THREADED ROD HANGER
0.0000
Each
The Light Source WM1.5P
Wall Mount for 1.5" Nominal (1.9" O.D.) Pipe
1/2"-13 tpi Cup Point Socket Set Screw locks to pipe with a ¼" hex key. Flange ships with 4 × 13/32" (.4065" diameter) holes on 3" centers for bolting to wall with 5/16" or 3/8" fasteners (Fasteners Not included).
Maximum Size
1.9" O.D. Pipe
Dimensions
4″ × 4″ × 5″
Weight
1 lbs.
Maximum Size
1.9" O.D. Pipe
Dimensions
4″ × 4″ × 5″
Weight
1 lbs.
Item#:
WALL MOUNT GRID
0.0000
Each
