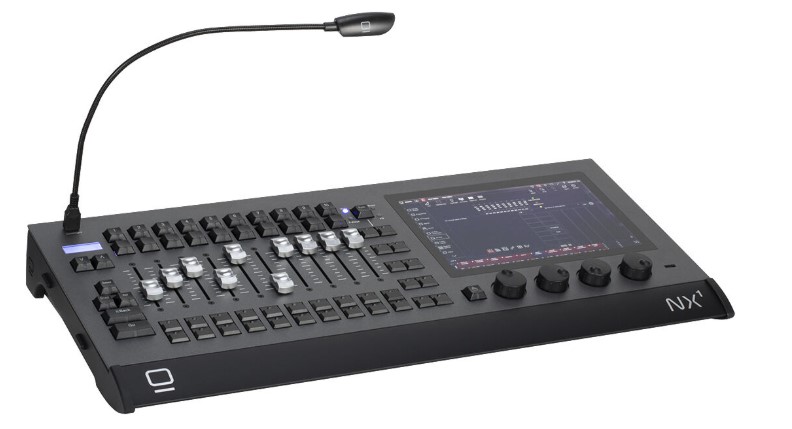

NX1 ONYX Lighting Controller

8 Universes / 4 DMX Ports
Including the latest in industrial components the NX1 contains a powerful new Intel processor, high speed NVMe SSD drive and 8GB of DDR4 RAM, allowing fast boot times, instant operation and the ability to process 8 Universes right inside the console. With four DMX ports, a Gigabit network port for up to 8 Universes of Art-Net, sACN plus the ONYX X-Net protocol the NX 1 has ample connectivity and power for a wide variety of shows and applications. One additional touch monitor is supported for even more direct access at anytime.
The NX1 is further expandable with the dedicated NXK keypad and the NXP motorized playback wing. A simple magnetic alignment system allows attachment on either side of the NX1. The keypad and playback wing are part of the ONYX platform and can be utilized with all other NX devices or ONYX on any PC system.
Features
Portable and compact fully featured lighting console
10.1” Full HD multi touch screen, 1x external touch display
ONYX Essential License (8 Universes)
Fully integrated industrial processing
10 Motorized Playbacks, 10 Playback / Function Hybrids, 4 Encoders, Master Go section
Specifications
Surface
  • 10x 60 mm motorized playback faders, each with 4x function-assignable buttons
  • 10x customizable playback or multi-function keys
  • Playback Select button
  • Master Go section with Go, Pause, Snap and Release
  • 4x digital rotary encoders with push function and status LED for fixture parameter control
  • Virtual Keypad control
Hardware
  • Industrial 10.1" TFT 16:9 touchscreen (1920x1200px)
  • 250 GB NVMe M.2 storage drive
  • Industrial motherboard with Intel CPU
  • Quiet thermal design using advanced copper heat pipe coolers
  • 8 GB DDR4 RAM
  • Integrated graphics processor
  • Windows 10 IoT Embedded Operating System
  • OS installation by USB 3.0 storage device
  • Supports Windows USB touchscreens
Connections
  • 4x DMX / RDM Universe In/Out: 5pin locking XLR
  • External Display: 1x HDMI
  • Network: 1x Gigabit RJ45 Ethernet for Art-Net, sACN and ONYX X-Net
  • Storage and Peripherals: 4x USB 3.0, 1x USB 2.0
  • Audio Out, Mic In: 2x 3.5mm Jack
  • Desk Lamp: USB 5V
  • IP65 Locking Power In
Physical
  • Length: 298.5 mm (11.75 in.)
  • Width: 636 mm (25 in.)
  • Height: 71 mm (2.8 in.)
  • Weight: 8.1kg (17.8 lbs.)
Electrical
  • 100-240V 50/60 Hz, 104W
Included Items
  • LED USB desk lamp
  • Dust Cover
  • USB 3.0 recovery drive
  • IP65 Locking power cable
Item#:
NX1007
Available:
Special Order/Direct Ship
4490.00
Each

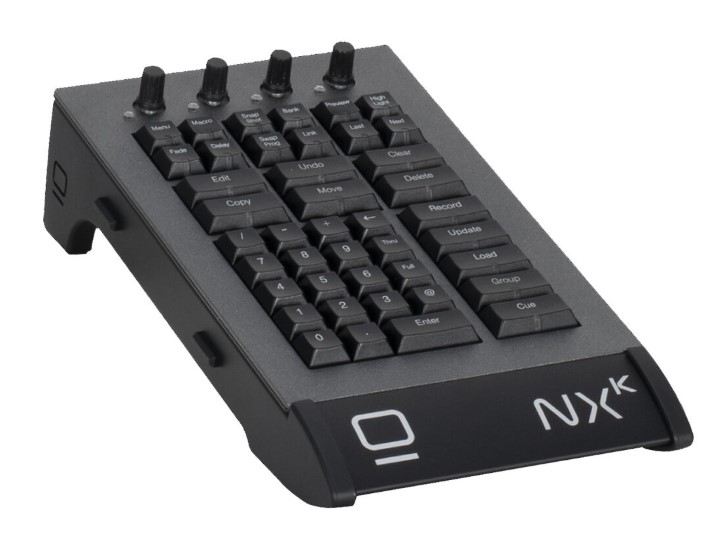

Features
  • Portable and compact USB keypad
  • Full ONYX keypad and command section
  • 4 Encoders with push and led feedback
  • ONYX Nova+ License (4 Universes + MIDI/OSC/ Timecode support)
  • USB powered
Specifications
Surface
  • ONYX numerical keypad
  • Command section
  • 4x digital rotary encoders with push function and status LED for fixture parameter control
Connections
  • 1x USB-B 2.0 input
Physical
  • Length: 298.5 mm (11.75 in.)
  • Width: 160 mm (6.3in.)
  • Height: 71 mm (2.8 in.)
  • Weight: 1.4 kg (3 lbs.)
Electrical
  • USB 5V
Included Items
  • ONYX USB cable
  • USB 3.0 recovery drive

Item#:
NXK601
Available:
Special Order/Direct Ship
490.00
Each

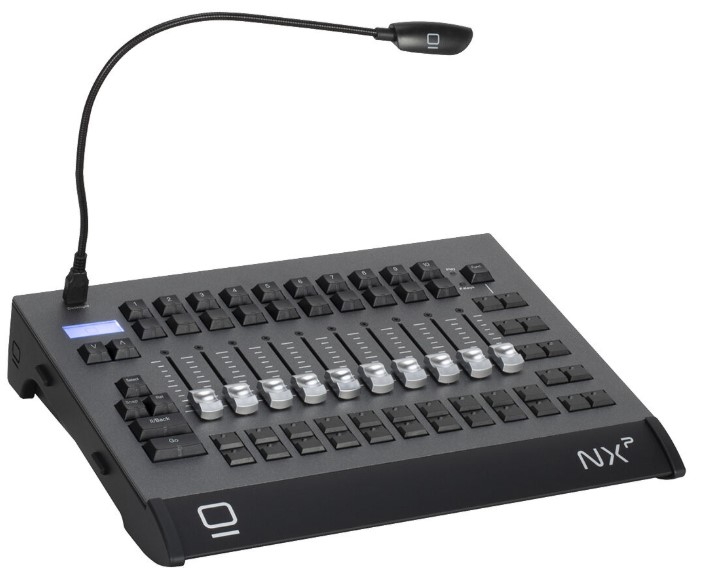

Features
  • Portable and compact motorized playback wing
  • 10 Motorized Playbacks, 10 Playback / Function Hybrids, Master Go section
  • 4x DMX Ports integrated
  • ONYX Nova+ License (4 Universes + MIDI/OSC/ Timecode support)
Specifications
Surface
  • 10x 60 mm motorized playback faders, each with 4x function-assignable buttons
  • 10x customizable playback or multi-function keys
  • Playback Select button
  • Master Go section with Go, Pause, Snap and Release
Connections
  • 4x DMX / RDM Universe In/Out: 5pin locking XLR
  • IP65 Locking Power In
  • 1x USB-B 2.0 input
Physical
  • Length: 298.5 mm (11.75 in.)
  • Width: 373mm (14.7 in.)
  • Height: 71 mm (2.8 in.)
  • Weight: 4.5 kg (9.9 lbs.)
Electrical
  • 100-240 V 50/60 Hz
Included Items
  • LED USB desk lamp
  • Dust Cover
  • USB 3.0 recovery drive
  • IP65 Locking power cable
Item#:
NXP122
Available:
Special Order/Direct Ship
2190.00
Each
