Elation DMX-Branch 4

1 In 4 Out DMX Splitter / Booster

Features

  • 3pin & 5pin DMX Inputs
    3pin & 5pin DMX Outputs (thru)
    4-Way 3pin & 5pin Isolated DMX Outputs
    Link Out / Terminate Button
    Linkable Up To (4) Units
    DMX Data LED Indicators
    19-inch Rack Mount Kit (included)
    3/16” (0.1875mm) Threaded Hole for Clamp (not included)

Specifications

SIZE / WEIGHT

  • Length: 13.0” (330mm)
  • Width: 7.25” (184mm)
  • Vertical Height: 3.0” (76mm)
  • Weight: 7.0 lbs. (3.2 kg)


ELECTRICAL / THERMAL

  • AC 120V - 60Hz
  • Fuse: 5A 250V 5x20mm


INCLUDED ITEMS

  • 19-inch Rack Mount Kit
Item#:
DMX-BRANCH 4
Available:
Special Order/Direct Ship
You must be logged in to order this item. Log in here

Elation eNode4

4 Universe DMX - Artnet Converter
FEATURES
(4) Universal DMX Ports (can be set as Input or Output)
(2) RJ45 TCP/IP 10/100M Ethernet Connections
Rotary Menu Wheel / Function Selection Button
LCD Menu / Function Display
PowerCON Power In
Auto MDI/MDIX, DMX-512, and ArtNet Support
ArtNet - DMX Bilateral Signal Conversion
DMX Splitter Function (1Input / 3 Outputs)
LCD Display & LED Indicators
Broadcast Mode (One Device Transmits Same Signal to Other Connected Devices)
Backup Mode

CONTROL / CONNECTIONS
(4) 5pin DMX Ports
(2) RJ45 TCP/IP 10/100M Ethernet Connections
Rotary Menu Wheel / Function Selection Button
LCD Menu / Function Display
PowerCON Power In

SIZE / WEIGHT
Length: 10.0" (255mm)
Width: 6.8" (173mm)
Vertical Height: 1.75" (43mm)
Weight: 3.5 lbs. (1.6kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
5W Max Power Consumption
35.6°F (2°C) to 113°F (45°C)

APPROVALS / RATINGS
CE | cETLus | IP20

INSTALLATION
Any Flat Surface Or On A Truss With Included Bracket

INCLUDED ITEMS
(1) 5 ft (1.5m) powerCON Cable
(2) EtherCON Cable Connector Carrier
Item#:
ENO406
Available:
Special Order/Direct Ship
You must be logged in to order this item. Log in here

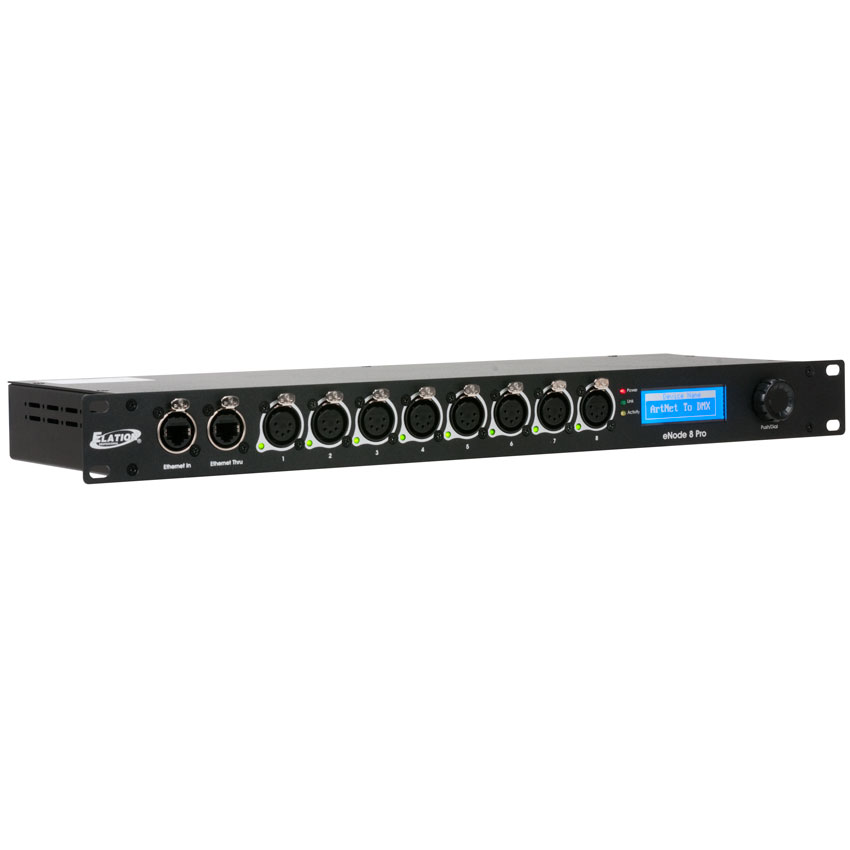

Elation eNode8 Pro

8 Universe DMX - Artnet Converter
FEATURES
(8) Universal DMX Ports (can be set as Input or Output)
(2) RJ45 TCP/IP 10/100M Ethernet Connections
Rotary Menu Wheel / Function Selection Button
LCD Menu / Function Display
PowerCON Power In
Auto MDI/MDIX, DMX-512, and ArtNet Support
ArtNet - DMX Bilateral Signal Conversion
DMX Splitter Function (1Input / 3 Outputs or 1A Input / 3A Outputs and 1B Input / 3B Outputs)
LCD Display & LED Indicators
Broadcast Mode (One Device Transmits Same Signal to Other Connected Devices)
Backup Mode

CONTROL / CONNECTIONS
(8) 5pin DMX Ports
(2) RJ45 TCP/IP 10/100M Ethernet Connections
Rotary Menu Wheel / Function Selection Button
LCD Menu / Function Display
PowerCON Power In

SIZE / WEIGHT
Length: 19.0" (482mm)
Width: 6.3" (160mm)
Vertical Height: 1.7" (44mm)
Weight: 4.6 lbs. (2.1kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
7W Max Power Consumption
35.6°F (2°C) to 113°F (45°C)

APPROVALS / RATINGS
CE | cETLus | IP20

INSTALLATION
Any Flat Surface Or Standard 19" (482mm) Rack Mount

INCLUDED ITEMS
(1) 5 ft (1.5m) powerCON Cable
(2) EtherCON Cable Connector Carrier
Item#:
ENO417
Available:
Special Order/Direct Ship
You must be logged in to order this item. Log in here

Elation Opto Branch 8

Opto Branch 8 DMX Opto Splitter

Features

  •  8-Way DMX Data Splitter / Fully DMX512 (1990) Compliant
  •  Buffers / Distributes DMX Data Reliably
  •  DMX Status LED Indicator
  •  (1) 5pin Neutrik XLR Isolated Input
  •  (1) 5pin Neutrik XLR Passive Loop Output
  •  (8) 5pin Neutrik XLR Isolated Outputs
  •  Auto Switching Power Supply / powerCON Input
Item#:
OPB178
Available:
Special Order/Direct Ship
You must be logged in to order this item. Log in here

Elation Opto Branch 6 RJ45

6-Way DMX/RDM Data Splitter / Amplifier

Features

  •  Neutrik EtherCON Master Input/Output
  •  Link / Terminate Button for Easy Troubleshooting
  •  (6) Isolated Neutrik EtherCON Outputs
  •  Auto Switching Power Supply

Specifications

 SIZE / WEIGHT
 19” (482mm) x 5.6” (141mm) x 1.7” (41mm)
 5.0 lbs. (2.3kg)

 ELECTRICAL
 AC 100-240V - 50/60Hz

 APPROVALS
 CE
Item#:
OPT934
Available:
Special Order/Direct Ship
You must be logged in to order this item. Log in here

Elation Opto Branch 4

1 In 4 Out DMX Opto Splitter
FEATURES
4-Way DMX Data Splitter / Fully DMX512 (1990) Compliant
Link / Terminate Button for Easy Troubleshooting
DMX Status LED Indicator
(1) 3pin + (1) 5pin Neutrik XLR Isolated Inputs
(1) 3pin + (1) 5pin Neutrik XLR Passive Loop Output
(4) 3pin + (4) 5pin Neutrik XLR Isolated Outputs

SIZE / WEIGHT
19" (482mm) x 5.7" (145mm) x 1.7" (44mm)
5.3 lbs. (2.4kg)

ELECTRICAL
AC 120V - 60Hz

APPROVALS
CE |
Item#:
OPTO BRANCH 4
Available:
Special Order/Direct Ship
You must be logged in to order this item. Log in here

Elation RDMX6S

RDM-DMX 6 Way Data Splitter
FEATURES
RDM E1.20 Compliant
5pin DMX Loop Thru Output with Built-In Termination
(6) Opto-Isolated 5pin DMX Outputs
powerCON In
Universal Multi-Voltage Auto Switching Power Supply
Mounting Bracket for Truss/Clamp Installation Included
Optional Single and Dual Unit Rack Mount Kits Available

CONTROL / CONNECTIONS
5pin DMX Input
5pin DMX Lopp Thru Output w/Built-In Termination
(6) 5pin Opto-Isolated DMX Outputs
powerCON In

SIZE / WEIGHT
Length: 6.8" (173mm)
Width: 6.7" (170mm)
Vertical Height: 2.9" (74mm) (with mounting bracket)
Weight: 2.1 lbs. (1.0kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
3W Max Power Consumption
14°F (-10°C) to 113°F (45°C)

APPROVALS / RATINGS
CE | RoHs


OPTIONAL ACCESSORIES:

RDM100 - Single Unit Rack Mount Kit

RDM222 - Dual Unit Rack Mount Kit
Item#:
RDMX6S
Available:
Special Order/Direct Ship
You must be logged in to order this item. Log in here
