Chauvet COLORADOBATTEN72X

COLORado Batten 72X RGBAW Wash Light
AT A GLANCE
  • RGBAW LED Batten for touring, rental, and production, indoors or out
  • All environment operation with IP rated power and DMX connection
  • Color temperature presets, from 3200 K to 10000 K
  • Selectable, smooth dimming curves for programming versatility
  • Built for touring, live event, television, and theatrical productions
  • Large, easy to navigate display with password protection
SPECIFICATIONS
OPTICAL
  • Light Source: 72 LEDs (18 red, 18 green, 18 blue, 9 white, 9 amber) 3 W, (690 mA), 50,000 hours life expectancy
  • Color Temperature (range): 3200 to 10000 K
  • CRI (3200 K): 80
  • Installed Optics: 24°
  • Beam Angle (Horizontal): 22°
  • Beam Angle (Vertical): 18°
  • Field Angle (Horizontal): 39 °
  • Field Angle (Vertical): 34°
  • Lumens: 3,631
  • Illuminance (total): 1730 lux @ 5 m
  • Selectable PWM: 600, 1200 Hz, 2000, 2400 Hz, 4000 Hz, 6000 Hz, 25000 Hz
DYNAMIC EFFECTS
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 25 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 5
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes
CONSTRUCTION / PHYSICAL
  • Dimensions: 39.37 x 6.14 x 2.95 in (1000 x 156 x 75 mm)
  • Weight: 18.6 lb (8.4 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast
CONNECTIONS
  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR
  • Cable Length (power): 5 ft. (1.5 m)
CONTROL
  • Control Protocol: DMX, RDM
  • DMX Channels: 1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 16  /   3 Cell: 9, 12, 15, 21, 22, 24, 27, 30, 43
  • Modes/Personalities: 18 personalities
ELECTRICAL
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 10 units @ 120 V; 17 units @ 208 V; 19 units @ 230 V
  • Power and Current: 161 W, 1.33 A @ 120 V, 60 Hz
  • Power and Current: 164 W, 0.79 A @ 208 V, 60 Hz
  • Power and Current: 163 W, 0.71 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
  • CE, MET
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
  • COLORado Batten 72X
  • Seetronic powerKON® IP65 power cord
  • (2) Omega bracket


Item#:
COLORADOBATTEN72X
Available:
Special Order/Direct Ship

Chauvet COLORado Batten 72X User Manual
Call to order

Chauvet COLORado Solo Edge 1

0.5-meter IP65-rated RGBwWL LED Footlight
Specifications
Optical
Light Source: 56 LEDs (Quintuple-color-RGBwWL), K 20,000 hours life expectancy
Color Temperature (range): 2800 to 8000 KColor Temperature (at full): 6350K
CRI (2800): 96.2
Beam Angle: 111.1° (Horizontal)Beam Angle: 120.1° (Vertical)Field Angle: 134.1 ° (Horizontal)Field Angle: 161.4° (Vertical)
Lumens: 7,144
Illuminance (total): 104 lux @ 5 m
PWM Frequency: 1000Hz, 2000Hz, 4000Hz, 6000Hz, 25KHz or 64KHz
Selectable PWM: 1000Hz, 2000 Hz, 4000Hz, 6000Hz, 25KHz or 64KHz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Framing Shutters: No
Strobe Rate: 0 to 30HzStandalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4Dim Curves: 4
Built-in Automated Programs: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes/No
Construction / Physical
Dimensions: 19.68 x 8.85 x 2.51 in (500 x 225 x 64 mm)Weight: 12.6 lb. (5.7kg)
Exterior Color: Black
Housing Material: Aluminum alloy and Aluminum diecast
Connections
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65Power Input: Seetronic Powerkon IP65Power Output: Seetronic Powerkon IP65Data Connectors: 5-pin XLRCable Length (power): 5 ft (1.5 m)
Control
Control Protocol: Art-Net, DMX, sACN
DMX Channels:
1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
Art-Net Channels:
1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
Modes/Personalities: Personalities (22)
Frequency (operating): 1000Hz, 2000Hz, 4000Hz, 6000Hz, 25KHz or 64KHz
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking:
Power and Current: 126 W, 1.05 A @ 120 V, 60 Hz
Power and Current: 125 W, .61 A @208 V, 60 Hz
Power and Current: 125 W, .55 A @230 V, 50 Hz
Certifications / Qualifications
CE, MET, ROH
SIP Rating: IP65, outdoor/wet, with pressure equalizing M6 GORE valve
Temperature (Ambient): 5 °F to 113 °F (-15 °C to 45 °C)
What's Included
COLORado Solo Edge 1
Seetronic Powerkon IP65 power cord
Power and Data linking cables
Stealth Filter
Omega bracket with mounting hardware
Item#:
COLORADOSOLOEDGE1
Available:
Special Order/Direct Ship

COLORado Solo Edge 1.jpg
1899.00
Each

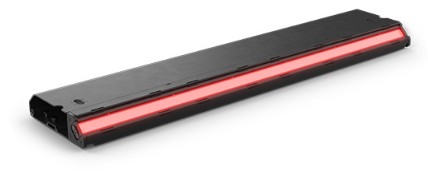

Chauvet COLORado Solo Edge 3

1-meter IP65-rated RGBwWL LED Footlight
Specifications
Optical
Light Source: 112 LEDs (Quintuple-color-RGBWL) , K 20,000 hours life expectancy
Color Temperature (range): 2800 to 8000 K
Color Temperature (at full): 6600 K
CRI (2800): 93
Beam Angle: 111° (Horizontal)
Beam Angle: 120° (Vertical)
Field Angle: 134° (Horizontal)
Field Angle: 161° (Vertical)
Lumens: 17,698
lluminance (total): 221 lux @ 5 m
PWM Frequency: 1000Hz, 2000Hz, 4000Hz, 6000Hz, 25KHz or 64KHz
Selectable PWM: 1000Hz, 2000 Hz, 4000Hz, 6000Hz, 25KHz or 64KHz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Framing Shutters: No
Strobe Rate: 0 to 30Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes/No
Construction / Physical
Dimensions: 39.37 x 8.85 x 2.51 in (1000x 225 x 64mm)
Weight:22 lb. (10 kg)
Exterior Color: Black
Housing Material: Aluminum alloy and Aluminum diecast
Connections
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: Art-Net, DMX, sACN
DMX Channels:
1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
4 Cell: 14, 15, 15, 18, 22, 33, 37, 41,42 or 69
Art-Net Channels:
1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23 or 37
4 Cell: 14, 15, 15, 18, 22, 33, 37, 41,42 or 69
Modes/Personalities: personalities (32)
Frequency (operating): 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz or 25KHz
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 5 ; 6 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V
Power and Current: 242 W, 2.03 A @ 120 V, 60 Hz
Power and Current: 237 W, 1.18 A @ 208 V, 60 Hz
Power and Current: 236 W, 1.06 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET, ROH
SIP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
Temperature (Ambient): 4 °F to 113 °F (-15 °C to 45 °C)
What's Included
COLORado Solo Edge 3
Seetronic Powerkon IP65 power cord
Power and Data linking cables
Stealth Filter
Omega bracket with mounting hardware
Item#:
COLORADOSOLOEDGE3
Available:
Special Order/Direct Ship

COLORado Solo Edge 3.jpg
2599.00
Each

Chauvet COLORstrip

RGB LED 38" Strip Light Fixture

Highlights

  • Full size, linear wash light designed for uplighting applications or for great eye-candy effects

  • Increase effects by power linking multiple units together to make runway chases

  • Create large, coordinated light shows with other COLORstrip™ and COLORstrip™ Mini fixtures in Master/Slave mode

  • Convenient, wireless non-DMX control using the optional IRC-6 remote

  • Save time running cables and extension cords by power linking multiple units

  • Easily transports in the CHS-60 VIP Gear Bag

Specifications

  • DMX Channels: 4
  • DMX Connectors: 3-pin XLR
  • Light Source: 384 LEDs (128 red, 128 green, 128 blue) 0.25 W (20 mA), 100,000 hours life expectancy
  • Beam Angle: 53° x 27°
  • Illuminance: 1,104 lux @ 2 m
  • Power Linking: 15 units @ 120 V; 28 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 72 W, 0.6 A @ 120 V, 60 Hz
    73 W, 0.3 A @ 230 V, 50 Hz
  • Weight: 4.5 lb (2 kg)
  • Dimensions: 38 x 2.5 x 6 in (965 x 64 x 155 mm)
  • Approvals: CE, MET
  • Optional Controllers: LED-FS1, IRC-6

What's Included

  • Power cord
  • Hanging bracket with mounting hardware
  • Warranty card
  • Quick Reference Guide
Item#:
COLORSTRIP
Available:
Special Order/Direct Ship

Chauvet COLORstrip User Manual
You must be logged in to order this item. Log in here

Chauvet COLORstrip Mini

RGB LED Linear Wash Light

Highlights

  • Compact, linear wash light designed for uplighting applications or great eye-candy effects

  • Increase effects by power linking multiple units together to create runway chases

  • Create coordinated light shows by linking other COLORstrip™, and COLORstrip™ Mini fixtures in Master/Slave mode

  • Convenient, wireless non-DMX control using the optional IRC-6 remote

  • Save time running cables and extension cords by power linking multiple units

  • Fits best in the CHS-60 VIP Gear Bag

Specifications

  • DMX Channels: 4
  • DMX Connectors: 3-pin XLR
  • Light Source: 192 LEDs (64 red, 64 green, 64 blue) 0.25 W (20 mA), 100,000 hours life expectancy
  • Beam Angle: 37° x 33°
  • Illuminance: 1,192 lux @ 2 m
  • Power Linking: 20 units @ 120 V; 38 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 38 W, 0.3 A @ 120 V, 60 Hz
    40 W, 0.2 A @ 230 V, 50 Hz
  • Weight: 3.3 lb (1.5 kg)
  • Dimensions: 19 x 2.1 x 6.1 in (482 x 52 x 155 mm)
  • Approvals: CE, MET
  • Optional Controllers: LED-FS1, IRC-6

What's Included

  • Power cord
  • Hanging bracket with mounting hardware
  • Warranty card
  • Quick Reference Guide
Item#:
COLORSTRIP MINI
Available:
Special Order/Direct Ship

Chauvet Colorstrip Mini User Manual
You must be logged in to order this item. Log in here

Chauvet Epix Drive 2000 IP

Processor For EPIX Tour Products-2000 LEDS-IP65 Rated

At a Glance

  • The processing and power center of the Epix Tour system will drive any combination of Epix Tour products, up to 2000 LEDs.

  • Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring/rental/installation markets.

  • Quickly and easily configure the Epix Drive 2000IP using the built-in OLED display and touchscreen menu.

  • Easily detect and automatically configure your devices using the auto-address function, regardless of fixture order or type (Bar/Strip/Strip IP).

  • Supports up to 20 Epix Strip IP, 36 Epix Strip Tours or 12 Epix Bar Tours.

  • Easily daisy chain fixtures directly from the 2 outputs of the Drive 2000IP.

  • Advanced power management design allows you to position the Drive 2000IP up to 150 ft away from your last fixture (using unshielded cable).

  • Works with Arkaos Media Master Express for a plug-n-play system that requires almost no training to operate.

  • Supports RDM over Artnet and full webserver interface for remote configuration.

Specifications

Construction / Physical

  • Dimensions (with rack ears): 19.01 x 3.30 x 10.35 in ( 483 x 84 x 263 mm)
  • Dimensions (without rack ears): 10.55 x 3.30 x 10.35 in (268 x 84 x 263 mm)
  • Weight: 12 lb (5.4 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum
  • Rackmount: 2U

Connections

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Device Outputs (4-pin XLR): 2
  • Physical Linking (port A): 10 inline Epix Strip IP Tour, 18 inline Epix Strip Tour or 6 inline Epix Bar Tour
  • Physical Linking (port B): 10 inline Epix Strip IP Tour, 18 inline Epix Strip Tour or 6 inline Epix Bar Tour
  • Data Connectors: Seetronic Etherkon IP65
  • Cable Length (power): 5 ft (1.5 m)
  • Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
  • Total max. cable length (shielded cables) between Epix Drive 2000 and last Epix Tour or IP fixture: 210 ft (64 m)
  • Max. cable length (shielded cables) between Epix Drive 2000 and first Epix Tour or IP fixture: 65 ft (20 m)
  • Max. cable length (shielded cables) between Epix Tour or IP fixtures: 60 ft (18 m)
  • Total max. cable length (unshielded cables) between Epix Drive 2000 and last Epix Tour or IP fixture: 300 ft (91 m)
  • Max. cable length (unshielded cables) between Epix Drive 2000 and first Epix Tour or IP fixture: 150 ft (45 m)
  • Max. cable length (unshielded cables) between Epix Tour or IP fixtures: 100 ft (30 m)

Control

  • Control Protocol: Art-Net, Kling-Net, sACN
  • Control Channels: 10 Art-Net/sACN Universes per port (20 total per device)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 530 W, 4.68 A @ 120 V, 60 Hz
  • Maximum Load: 10 EPIX Strip Ip or 18 EPIX Strip Tour or 6 EPIX Bar Tour (per output)

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE® valve
  • Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

  • Epix Drive 2000IP
  • Seetronic Powerkon IP65 power cord

Required Accessories

  • Compatible Mounting Options: M12 Clamp
Item#:
EPIXDRIVE2000IP
Available:
Special Order/Direct Ship

Chauvet Epix Drive 2000 IP User Manual
You must be logged in to order this item. Log in here

Chauvet Epix Drive 900

Pixel Driver for Epix Series Pixel Bars

At a Glance

  • The processing and power center of the Epix Tour system will drive any combination of Epix Tour products, up to 900 LEDs

  • Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring/rental/installation markets

  • Quickly and easily configure the Epix Drive 900 using the built-in OLED display

  • Easily detect and automatically configure your devices using the auto-address function, regardless of fixture order or type (bar/strip)

  • Supports up to 18 Epix Strip Tours or 6 Epix Bar Tours

  • Easily daisy chain fixtures directly from the single output of the Drive 900 on a single cable

  • Advanced power management design allows you to position the Drive 900 up to 65 ft away from your last fixture (using shielded cable)

  • Works with Arkaos Media Master Express for a plug-n-play system that requires almost no training to operate



    Specifications

    Construction / Physical

    • Dimensions (with rack ears): 19.02 x 7.60 x 1.97 in (483 x 193 x 50 mm)
    • Dimensions (without rack ears): 11.14 x 7.60 x 1.97 in (283 x 193 x 50 mm)
    • Weight: 5.42 lb (2.46 kg)
    • Weight (shipping weight): 7.72 lb (3.5 kg)
    • Threaded Bolt: M12
    • Exterior Color: Black
    • Housing Material: Steel
    • Rackmount: 1U

    Connections

    • Power Connection: Edison (Local) plug to Neutrik powerCON
    • Power Input: Neutrik powerCON
    • Power Output: Neutrik powerCON
    • Device Outputs (4-pin XLR): 1
    • Physical Linking: 18 inline Epix Strip Tour or 6 inline Epix Bar Tour
    • Data Connectors: Neutrik etherCON
    • Cable Length (power): 5 ft (1.5 m)
    • Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
    • Total max. cable length (shielded cables) between Epix Drive 900 and last Epix Tour fixture: 210 ft (64 m)
    • Max. cable length (shielded cables) between Epix Drive 900 and first Epix Tour fixture: 65 ft (20 m)
    • Max. cable length (shielded cables) between Epix Tour fixtures: 60 ft (18 m)
    • Total max. cable length (unshielded cables) between Epix Drive 900 and last Epix Tour fixture: 300 ft (91 m)
    • Max. cable length (unshielded cables) between Epix Drive 900 and first Epix Tour fixture: 150 ft (45 m)
    • Max. cable length (unshielded cables) between Epix Tour fixtures: 100 ft (30 m)

    Control

    • Control Protocol: Art-Net, Kling-Net, sACN
    • Control Channels: 6 Art-Net/sACN Universes

    Electrical

    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power Linking: 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V
    • Power and Current: 299 W, 2.53 A @ 120 V, 60 Hz
    • Power and Current: 299 W, 1.44 A @ 208 V, 60 Hz
    • Power and Current: 299 W, 1.31 A @ 230 V, 50 Hz
    • Power and Current (resting): 23 W, 0.195 A @ 120 V, 60 Hz
    • Power and Current (resting): 32 W, 0.156 A @ 208 V, 60 Hz
    • Power and Current (resting): 32 W, 0.133 A @ 230 V, 50 Hz
    • Maximum Load: 18 EPIX Strip Tour or 6 EPIX Bar Tour (per output)

    Cable

    • 4PXLREXT16IN
    • 4PXLREXT5FT
    • 4PXLREXT50FT

    Certifications / Qualifications

    • CE, MET
    • IP Rating: IP20, dry location
    • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

    What's Included

    • E‰pix Drive 900
    • Neutrik powerCON power cord
    • Rack ears (2)
    • Bag of rack ear mounting screws
    • Rubber feet (4)

    Optional Accessories

    • ArKaos Media Master Express + KN software
    • Clamps
    • Neutrik powerCON cables
    • Neutrik etherCON cables
    • 4-pin XLR cables
Item#:
EPIXDRIVE900
Available:
Special Order/Direct Ship

Chauvet Epixdrive 900 User Manaul
You must be logged in to order this item. Log in here

Chauvet Epix Strip Tour

RGB LED Pixel Strip

At a Glance

  • Pixel-mapping 1-meter 50 x 1 LED strip for showing video and/or motion graphics

  • Includes both black stealth filter (installed) for high contrast and white frosted filter (included) for high output

  • Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets

  • Increase viewing angle by using the optional dome accessory

  • E‰PIX Drive 900 required for operation



    Specifications

    Optical

    • Light Source: 50 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
    • Viewing Angle: 125°
    • Viewing Angle (with optional dome accessory): 180°
    • Illuminance (white frost filter installed): 1,094 NITS
    • Illuminance (with optional dome accessory): 701 NITS
    • Illuminance (black stealth filter installed): 267 NITS
    • Pixels: 50 x 1
    • Pixel Pitch: 20 mm
    • Refresh Rate: 4,700 Hz

    Construction / Physical

    • Dimensions: 39.37 x 4.72 x 1.18 in (1000 x 120 x 30 mm)
    • Dimensions (with optional dome accessory): 39.37 x 5.31 x 1.18 in (1000 x 135 x 30 mm)
    • Weight: 3.44 lb (1.56 kg)
    • Weight (with optional dome accessory): 3.51 lb (1.59 kg)
    • Exterior Color: Black
    • Housing Material: Aluminum

    Connections

    • Data Connectors: 4-pin XLR
    • Physical Linking: 18 inline Epix Strip Tour
    • Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
    • Total max. cable length (shielded cables) between Epix Drive 900 and last Epix Tour fixture: 210 ft (64 m)
    • Max. cable length (shielded cables) between Epix Drive 900 and first Epix Tour fixture: 65 ft (20 m)
    • Max. cable length (shielded cables) between Epix Tour fixtures: 60 ft (18 m)
    • Total max. cable length (unshielded cables) between Epix Drive 900 and last Epix Tour fixture: 300 ft (91 m)
    • Max. cable length (unshielded cables) between Epix Drive 900 and first Epix Tour fixture: 150 ft (45 m)
    • Max. cable length (unshielded cables) between Epix Tour fixtures: 100 ft (30 m)

    Control

    • Control Protocol: Art-Net, Kling-Net, sACN
    • Control Channels: 150

    Electrical

    • Power and Current: 17 W, 0.14 A @ 120 V, 60 Hz
    • Power and Current: 17 W, 0.08 A @ 208 V, 60 Hz
    • Power and Current: 17 W, 0.07 A @ 230 V, 50 Hz

    Cable

    • 4PXLREXT16IN
    • 4PXLREXT5FT
    • 4PXLREXT50FT

    Certifications / Qualifications

    • CE, MET
    • IP Rating: IP20, dry location
    • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

    What's Included

    • E‰PIX Strip Tour
    • White Frost Filter

    Optional Accessories

    • ArKaos Media Master Express + KN software
    • Clamps
    • Dome accessory
    • 4-pin XLR cables

    Required Accessories

    • E‰PIX Drive 900
Item#:
EPIXSTRIPTOUR
Available:
Special Order/Direct Ship

Chauvet EPIX Strip Tour User Manual
You must be logged in to order this item. Log in here

Chauvet DJ IRC6

Infrared Remote Control (IRC) for IRC Compatible Lighting Fixtures

Highlights

  • Wireless remote control for all CHAUVET Freedom series and IRC products

  • Allows you to wirelessly select color, intensity, strobe rate and more

  • Provides instant access to pre-programmed light shows

  • Manually set individual color percentages to achieve the exact color without a DMX controller

Specifications

  • Input Voltage: 3 VDC lithium battery (CR2025)
  • Weight: 0.7 oz (20 g)
  • Size: 3.9 x 1.8 x 0.3 in (100 x 47 x 7 mm)
  • Approvals: CE
Item#:
IRC6
Available:
Special Order/Direct Ship

Chauvet IRC6 User Manual
You must be logged in to order this item. Log in here

Chauvet Ovation B-2805FC

RGBAL LED Batten Fixture

Optical

  • Light Source: 280 LEDs (60 red, 60 green, 60 blue, 40 amber, 60 lime) 8 W, (740 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 K to 6500 K
  • Installed Optics: 20°
  • Beam Angle (horizontal): 25°
  • Beam Angle (vertical): 20°
  • Beam Angle (horizontal w/filter): 52°
  • Beam Angle (vertical w/filter): 20°
  • Field Angle (horizontal): 42°
  • Field Angle (vertical): 40°
  • Field Angle (horizontal w/filter): 83°
  • Field Angle (vertical w/filter): 40°
  • Illuminance: 5,586 lux @ 5 m
  • Illuminance (w/filter): 2,320 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz

Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

Construction / Physical

  • Dimensions: 69 x 8.26 x 8.13 in (1,753 x 210 x 207 mm)
  • Weight: 45.4 lb (20.5 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 68.90 x 3.66 in (1,750 x 93 mm)

Connections

  • Power Connection: Edison (Local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR, Amphenol etherCON® Compatible
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Protocol(s): Art-Net™, DMX, RDM, sACN
  • DMX Channels: 1 Cell: 3, 4, 5, 8, 9, 10, 10, 17 - 2 Cell: 6, 8, 10, 15, 17, 19, 20, 31 - 5 Cell:15, 20, 25, 33, 38, 43, 50, 70 - 10 Cell: 30, 40, 50, 63, 73, 83, 100, 135
  • Art-Net Channels: 1 Cell: 3, 4, 5, 8, 9, 10, 10, 17 - 2 Cell: 6, 8, 10, 15, 17, 19, 20, 31 - 5 Cell:15, 20, 25, 33, 38, 43, 50, 70 - 10 Cell: 30, 40, 50, 63, 73, 83, 100, 135
  • Modes/Personalities: 32 personalities

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2 units @ 120 V; 3 units @ 208 V; 4 units @ 230 V
  • Power and Current: 620 W, 5.16 A @ 120 V, 60 Hz
  • Power and Current: 601W, 2.98 A @ 208 V, 60 Hz
  • Power and Current: 597 W, 2.76 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP20, dry location

What's Included

  • Ovation B-2805FC
  • Neutrik® powerCON® power cord
  • Wall Washing Filter
Item#:
OVATIONB2805FC
Available:
Special Order/Direct Ship

Chauvet Ovation B-2805FC User Manual
You must be logged in to order this item. Log in here
1 - 10 of 10
View:
