1 - 7 of 7
Description
Price
Quantity
Fehr LMBC-1
One Ton Capacity Beam Clamp
Fits flange width range of 3-9 inches
Permanent or temporary mounting
Load bar diameter = 1 inch
Weight: 9 lbs.
Safety Notice
Using beam clamps safely
Permanent or temporary mounting
Load bar diameter = 1 inch
Weight: 9 lbs.
Safety Notice
Using beam clamps safely
- Ensure that the beam clamp is of correct capacity for the load being lifted and that the beam will not be damaged by localized overloading.
- Ensure that the clamp is fitted correctly over the center of gravity of the item being lifted and will not be subjected to side loading.
- Before lifting a load, ensure that the clamp has been tightened and that the lifting appliance is fitted correctly into the eye of the clamp.
- Ensure that beam clamps are kept clean and moving parts are lubricated.
- Regularly inspect beam clamps for wear, damage, distortion, cracks, and any defects likely to cause danger.
- If any of the above defects are found, remove the beam clamp from service and refer to a competent professional.
Item#:
LMBC-1
Available:
Special Order/Direct Ship
Call to order
Fehr LMBC-2
Two Ton Capacity Beam Clamp
Fits flange width range of 3-9 inches
Permanent or temporary mounting
Load bar diameter = 1 inch
Weight: 11 lbs.
 Safety Notice
Using beam clamps safely
Permanent or temporary mounting
Load bar diameter = 1 inch
Weight: 11 lbs.
 Safety Notice
Using beam clamps safely
- Ensure that the beam clamp is of correct capacity for the load being lifted and that the beam will not be damaged by localized overloading.
- Ensure that the clamp is fitted correctly over the center of gravity of the item being lifted and will not be subjected to side loading.
- Before lifting a load, ensure that the clamp has been tightened and that the lifting appliance is fitted correctly into the eye of the clamp.
- Ensure that beam clamps are kept clean and moving parts are lubricated.
- Regularly inspect beam clamps for wear, damage, distortion, cracks, and any defects likely to cause danger.
- If any of the above defects are found, remove the beam clamp from service and refer to a competent professional.
Item#:
LMBC-2
Available:
Special Order/Direct Ship
Call to order

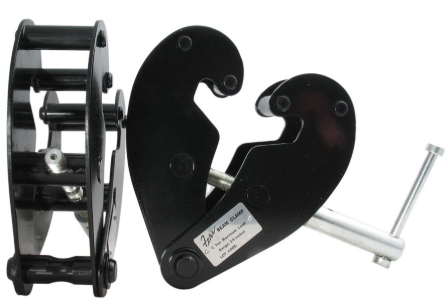

Fehr LMBC-3
Three Ton Capacity Beam Clamp
Flange Range: 3-12 in
Load Bar: 1 in
Weight: 23 lbs / Each
Safety Notice
Using beam clamps safely
Load Bar: 1 in
Weight: 23 lbs / Each
Safety Notice
Using beam clamps safely
- Ensure that the beam clamp is of correct capacity for the load being lifted and that the beam will not be damaged by localized overloading.
- Ensure that the clamp is fitted correctly over the center of gravity of the item being lifted and will not be subjected to side loading.
- Before lifting a load, ensure that the clamp has been tightened and that the lifting appliance is fitted correctly into the eye of the clamp.
- Ensure that beam clamps are kept clean and moving parts are lubricated.
- Regularly inspect beam clamps for wear, damage, distortion, cracks, and any defects likely to cause danger.
- If any of the above defects are found, remove the beam clamp from service and refer to a competent professional.
Item#:
LMBC-3
Available:
Special Order/Direct Ship
Call to order
Mega Beam Clamp MBC3T-24B
24 inch Mega Beam Clamp, 2 Ton, Black
Fastens from 2 inch to 24 inch wide I-Beam flanges up to 1" thick. Center hole is 1-1/2"
Item#:
MBC2T-24B
Available:
Special Order/Direct Ship
579.67
Each
Mega Beam Clamp MBC3T-24M
24 inch Mega Beam Clamp, 2 Ton, Silver
Item#:
MBC2T-24M
Available:
Special Order/Direct Ship
550.06
Each
Mega Tent MTBC4
4" Mega-Tent Beam Clamp 1 Ton
Operation:
The Mega Tent Beam Clamps opens 5-1/4" to fasten securely into the Keder track slot in free span tent beams. The 4" Mega-Tent Beam Clamp engages the Keder track slot on both sides for 4 inchs. 4" Mega-Tent Beam Clamp has a centered hole for a 5/8 inch shackle, and two drilled and tapped 1/2"inch 13 tpi holes for attaching Mega-Couplers to hold pipe. The 4" Mega Tent Beam Clamp’s unique design has triple steel shafts, three quarters of an inch thick. The central shaft is threaded with a fine pitch left and right thread and has a captive vise style handle for tightening securely to the tent beam. The central shaft is captured onto the load attachment block ensuring that the load is always centered on the tent beam. The outside shafts are secured onto one jaw, and float in bearings in the load attachment block and the opposite jaw. The load attachment block and jaws are CNC machined from aircraft grade aluminum.
The Mega Tent Beam Clamps opens 5-1/4" to fasten securely into the Keder track slot in free span tent beams. The 4" Mega-Tent Beam Clamp engages the Keder track slot on both sides for 4 inchs. 4" Mega-Tent Beam Clamp has a centered hole for a 5/8 inch shackle, and two drilled and tapped 1/2"inch 13 tpi holes for attaching Mega-Couplers to hold pipe. The 4" Mega Tent Beam Clamp’s unique design has triple steel shafts, three quarters of an inch thick. The central shaft is threaded with a fine pitch left and right thread and has a captive vise style handle for tightening securely to the tent beam. The central shaft is captured onto the load attachment block ensuring that the load is always centered on the tent beam. The outside shafts are secured onto one jaw, and float in bearings in the load attachment block and the opposite jaw. The load attachment block and jaws are CNC machined from aircraft grade aluminum.
Item#:
MTBC4
Available:
Special Order/Direct Ship
165.02
Each
Mega Tent MTBC8
8" Mega-Tent Beam Clamp 2 Ton
Operation:
The Mega Tent Beam Clamps opens 5-1/4" to fasten securely into the Keder track slot in free span tent beams. The 8" Mega-Tent Beam Clamp engages the Keder track slot on both sides for 8 inches. The 8" Mega-Tent Beam Clamp has a centered hole for a 5/8 inch shackle, and two drilled and tapped 1/2"inch 13 tpi holes for attaching Mega-Couplers to hold pipe. The 8" Mega Tent Beam Clamp’s unique design has triple steel shafts, each one inch thick. The central shaft is threaded with a fine pitch left and right thread and has a captive vise style handle for tightening securely to the tent beam. The central shaft is captured onto the load attachment block ensuring that the load is always centered on the tent beam. The outside shafts are secured onto one jaw, and float in bearings in the load attachment block and the opposite jaw. The load attachment block and jaws are CNC machined from aircraft grade aluminum.
The Mega Tent Beam Clamps opens 5-1/4" to fasten securely into the Keder track slot in free span tent beams. The 8" Mega-Tent Beam Clamp engages the Keder track slot on both sides for 8 inches. The 8" Mega-Tent Beam Clamp has a centered hole for a 5/8 inch shackle, and two drilled and tapped 1/2"inch 13 tpi holes for attaching Mega-Couplers to hold pipe. The 8" Mega Tent Beam Clamp’s unique design has triple steel shafts, each one inch thick. The central shaft is threaded with a fine pitch left and right thread and has a captive vise style handle for tightening securely to the tent beam. The central shaft is captured onto the load attachment block ensuring that the load is always centered on the tent beam. The outside shafts are secured onto one jaw, and float in bearings in the load attachment block and the opposite jaw. The load attachment block and jaws are CNC machined from aircraft grade aluminum.
Item#:
MTBC8
Available:
Special Order/Direct Ship
296.18
Each
1 - 7 of 7
