Hubbell HBL2313VBK
- Unique patented clamp type terminals provide a superior electrical connection by “bundling” the conductor strands when clamps are tightened
- Totally insulated impact and crush resistant nylon body
- Powerful cord grip prevents conductor slippage and strain on wiring terminals
Hubbell HBL2321
Twist-Lock®
Devices
20A,
250V AC, 2 Pole, 3 Wire Grounding
Insulgrip® Plug
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
Hubbell HBL2323
Twist-Lock®
Devices
20A,
250V; 2 Pole, 3 Wire Grounding
Insulgrip®
Connector
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
Hubbell HBL2411
Twist-Lock®
Devices
20A,
125/250V AC, 3 Pole, 4 Wire Grounding
Insulgrip®
Plug
Features
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
Hubbell HBL2415
Twist-Lock®
Devices
20A,
125/250V AC, 3 Pole, 4 Wire Grounding
Insulgrip®
Flanged Inlet
Features
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
- Mounting screws included
Hubbell HBL2431
Twist-Lock®
Devices
20A,
3 Phase 480V AC, 3 Pole, 4 Wire
Grounding
Insulgrip®
Plug
Features
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
Hubbell HBL2433
Twist-Lock® Devices
20A, 3 Phase 480V AC; 3 Pole, 4
Wire
Grounding
Insulgrip® Connector
Features
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.

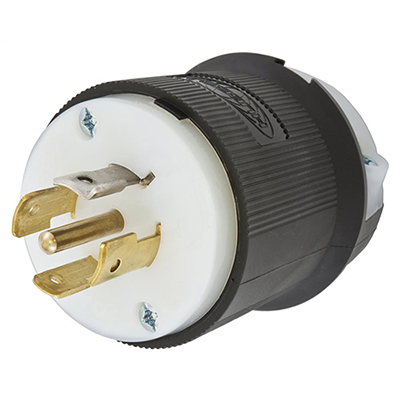

Hubbell HBL2511
4P5W, 20A 3PH 120/208V AC, L21-20P, Black & White Nylon |
Product Specifications | |
---|---|
NEMA Configuration | |
Product Item | Plug |
Wiring Scheme | 4-Pole, 5-Wire Grounding |
Amperage | 20A |
Voltage | 3 Phase Y 120/208V AC |
NEMA Configuration | L21-20P |
Item Style | Insulgrip |
Device Color | Black/White |
Horsepower | 2 |
Cord Dia. | .35"-1.15" (9-29) |
Blade Holder Material | Natural White Nylon |
Terminal Retainer Material | Clear polycarbonate |
Housing Material | Black nylon |
Cord Clamp Material | Natural (white) nylon |
Blade Material | Brass |
Terminal Clamp Material | .08" (2) steel-nickel plated |
Terminal Screw Material | #10-32 Brass (white finish on neutral screw when used) Multi-drive |
Ground Screw Material | #10-32 Brass (green finish) Multi-drive |
Cord Clamp Screw Material | Steel, zinc plated Multi-drive |
Body Holding Screw Material | Steel, zinc plated Multi-drive |
Ratings | Molded In or Stamped On |
Catalog No | Permanently ink marked on product |
Dielectric Voltage Withstand | 2,000V minimum |
Current Interrupting | Certified for current interrupting at full rated current |
Temperature Rise | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. |
Cord Accommodation | Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49. |
Terminal Accommodation | 20A #12 AWG |
Terminal Identification | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
Flammability | HB or better per UL 94 or CSA 22.2 No. 0.6 |
Operating Temperatures | Maximum Continuous 75 C Minimum -40 C (w/o impact) |
Moisture Resistance | IP20 |
Listings | FED SPEC UL/CSA |
UPC Number | 783585038537 |
Weight in LBs | 0.3 |
Hubbell HBL2513
Twist-Lock®
Devices
20A,
3 Phase Y 120/208V AC; 4 Pole, 5 Wire
Grounding
Insulgrip®
Connector
Features
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
Hubbell HBL2516
Twist-Lock®
Devices
20A,
3 Phase Y 120/208V AC, 4 Pole, 5 Wire
Grounding
Insulgrip®
Flanged Receptacle
Features
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
- Mounting screws included
Hubbell HBL9965C
- Ribbed nylon housing provides a secure grip and impact and chemical resistance.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants
Hubbell HBL2311
Twist-Lock®
Devices
20A,
125V AC, 2 Pole, 3 Wire Grounding
Insulgrip®
Plug
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
