1 - 7 of 7
Description
Price
Quantity

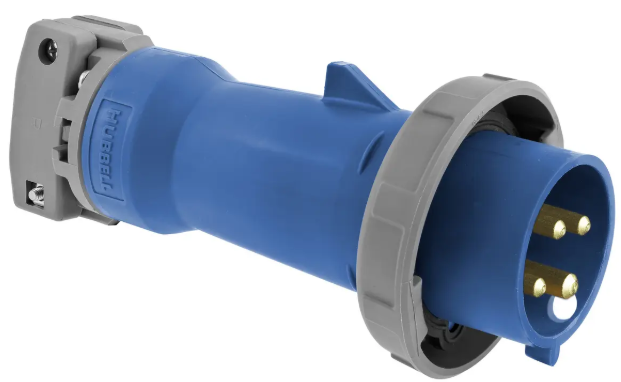

1HBL560P9W Hubbell Hubbell 100A Pin & Sleeve Plug
Male, Plug, 100A 3-Phase Delta 250V AC, 3- Pole 4-Wire Grounding
Watertight Devices - Hubbell’s IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL® series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell’s horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting “line of sight” disconnecting means.
- Solid one-piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal
- Heavy duty external cord grips
Call to order
HBL5100C9W Hubbell 100A Pin & Sleeve Connector
4 Pole / 5 Wire - 3 Phase 120/208V
Features
- Self-closing gasketed cover
- Super tough insulated non-metallic housing
- Watertight neoprene glad seal to prevent water ingress from
- entering at cable entrance
- Sequential contact engagement to prevent a momentary
- over-voltage
- Multi contact spring provides and maintains high unit pressure on
- mating pins to minimize temperature rise
UPC 783585405063
You must be logged in to order this item.
Log in here
HBL5100P9W Hubbell 100A Pin & Sleeve Plug
4 Pole / 5 Wire - 3 Phase 120/208V
Features:
- One piece non-metallic housing provides impact and chemical resistance in an insulated body
- Solid one-piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal when mated with receptacle or connector
- Heavy duty external cord grips for maximum cord retention
You must be logged in to order this item.
Log in here
HBL530C9W Hubbell 30A Pin & Sleeve Connector
4 Pole / 5 Wire - 3 Phase 120/208V
Features
- Self-closing gasketed cover
- Super tough insulated non-metallic housing
- Watertight neoprene glad seal to prevent water ingress from
- entering at cable entrance
- Sequential contact engagement to prevent a momentary
- over-voltage
- Multi contact spring provides and maintains high unit pressure on
- mating pins to minimize temperature rise
You must be logged in to order this item.
Log in here
HBL530C9W Hubbell 30A Pin & Sleeve Plug
4 Pole / 5 Wire - 3 Phase 120/208V
Features
- One piece non-metallic housing provides impact and chemical
- resistance in an insulated body
- Solid one-piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal when mated with receptacle or connector
- Heavy duty external cord grips for maximum cord retention
You must be logged in to order this item.
Log in here
HBL560C9W Hubbell Hubbell 60A Pin & Sleeve Connector
4 Pole / 5 Wire - 3 Phase 120/208V
Features
- Self-closing gasketed cover
- Super tough insulated non-metallic housing
- Watertight neoprene glad seal to prevent water ingress from
- entering at cable entrance
- Sequential contact engagement to prevent a momentary
- over-voltage
- Multi contact spring provides and maintains high unit pressure on
- mating pins to minimize temperature rise
UPC 783585405674
You must be logged in to order this item.
Log in here
HBL560P9W Hubbell Hubbell 60A Pin & Sleeve Plug
4 Pole / 5 Wire - 3 Phase 120/208V
Features
- Solid one-piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal
- Heavy duty external cord grips
UPC 783585405704
You must be logged in to order this item.
Log in here
1 - 7 of 7
