ADJ WMX200

WMX1 Mk2 DMX Controller
Item #:WMX200
Available: Special Order/Direct Ship

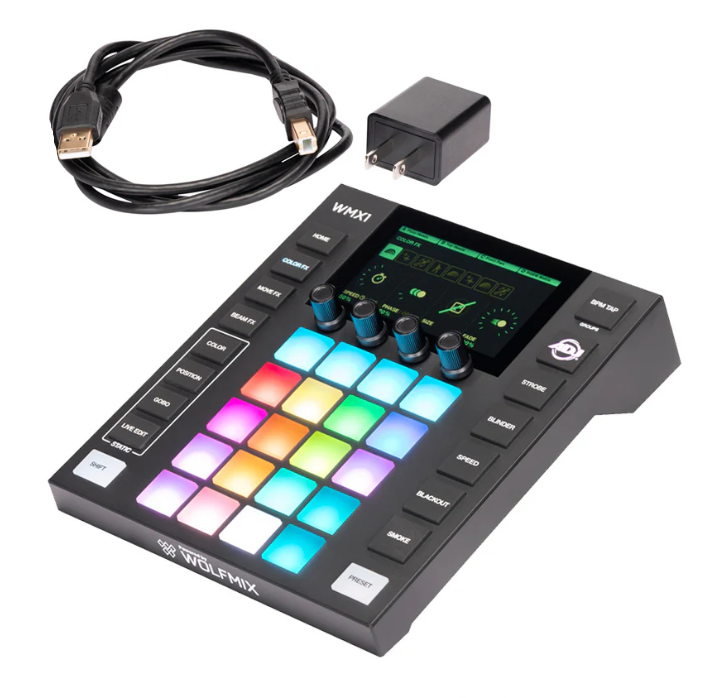

Offering a unique new hands-on interface for creative lighting control, the ADJ WMX1 Mk2 is a powerful and compact standalone DMX controller. Designed for creating high-impact lightshows on the fly without a computer, it features an intuitive workflow, powerful internal FX engine, and tactile controls that make it easy for anyone to take control of a DMX lighting rig comprised of multiple fixture types. WMX1 MK2 upgrades include larger encoder caps, MIDI triggering, and an added USB-A socket for MIDI controller or memory stick.
859.99
Each
Quantity:
Quantity Price
1.0 859.99
The WMX1 Mk2 features four DMX output sockets (two 5-pin and two 3-pin) with the ability to map any universe to any output, allowing the unit to also serve as a DMX splitter. Out of the box the system supports 2 DMX universes, while two additional universes are available as upgrades through the WTOOLS app. It also features both an internal microphone and 3.5mm jack line input socket for automated BPM detection, as well as a button that allows the BPM to be ‘tapped in’ manually.
Setup
  • Standalone (no computer needed)
  • Compatible with any DMX device
  • Standard unit comes with 2 DMX universe but up to 2 additional universes are available as add-ons, which are sold via the WTOOLS app.
  • Up to 680 fixtures beams
  • Up to 50 fixture types
  • Up to 5000 fixture features (color/gobo etc...)
  • 8 fixture groups
  • 6 projects
  • 15000+ available fixtures (3500+ on the controller)
  • DMX address, fixture order group setup
  • Use as a DMX splitter with DMX universe mapping
Palettes FX
  • Color FX module with 8 effect types 16 definable colors
  • Move FX module with 8 effect types
  • Beam FX module with 8 effect types
  • 6 Flash buttons for controlling Special FX, Strobe, Blinder, Speed, Blackout Smoke
  • Static color palette with 10 user definable colors per group gradient control
  • Static position palette with 5 user definable positions per group with fade fanning
  • Gobo palette with 5 user definable gobos per group
  • 20 namable live edit buttons with flash triggering mode and ‘Park’ function
  • 100 namable presets for storing snapshots with hold and fade timings
  • Preset playback cue list- all presets or per page of 20 presets
Control Sync
  • Group and master dimming with encoder acceleration
  • Group FLASH, FULL and Blackout
  • 16 bit Pan/Tilt control
  • Multi-beam LED bar control
  • FX music pulse sync from Microphone or Line-In
  • FX BPM sync with Ableton Link, OS2L or BPM TAP
  • Effect Speed, Phase, Order, Size, Fade, Fan Flick
  • Live control of move FX registration point
  • Global FX speed and freeze control
  • Map DMX IN with group dimmer and patch to output channels*
  • WLINK - sync with another Wolfmix controller
Built-in tools
  • Fixture Builder
  • Fixture calibration tool, to limit the area of moving fixtures
  • X-Y touch controlled positioning grid
  • RGBW touch controlled color picker
  • 8-step real time sequencer for creating beam and move FX
  • Live view of DMX levels with default value override and DMX channel tester
  • Beam Editor to override Min and Max values used in generated FX
Other neat features
  • Calibrate and RGB, White, Amber, UV mixing with automatic fixed color wheel translation
  • Automatic matching of similar gobos across different fixture types
  • Timed release of flash and preset buttons
  • Fixture FLIP function, for reversing beam order
  • Fixture SPLIT function, for splitting up multi-FX bars
  • Lock full controller, or lock editing with a password
  • Project fixture backup with WTOOLS app
  • Offline 3D visualization with Easy View WTOOLS over USB*
  • Auto-recovery of active project (no manual saving needed)
  • Import different fixture setups into the same project
  • Starts in under 2 seconds. Starts sending DMX in under 1 second
  • Factory firmware startup recovery mode for times of crisis
  • *some features require an add-on purchase available through the WTOOLS app
Display
  • 4.3” Color TFT with tinted glass
  • Capacitive touch
Encoders
  • Full body alloy
  • Incremental push with acceleration
Button pads
  • 37 Silicone buttons with matte oil finishing
  • LED color backlit
Processing
  • 220Mhz CPU with ARM core
  • 8MB RAM
  • 16MB Flash
Audio
  • Sync FX with the music
  • Analog audio peak detection circuit
  • Built in microphone with auto-gain
  • 3.5mm jack socket

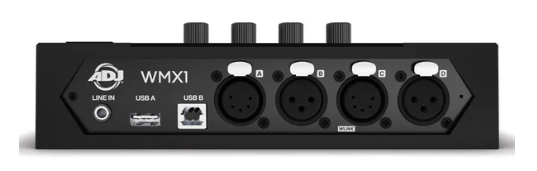

DMX
2x 3pin DMX OUT XLR connectors
1x 5pin DMX OUT XLR connector
1x 5pin DMX IN/OUT XLR connector with WLINK
USB
  • USB B powered
  • USB A port for MIDI over USB and project loading back-up
  • Sync with Ableton Link OS2L via a computer
  • Link with MIDI faders and sync with MIDI clock
  • Backup projects and fixtures to a memory stick
Housing
  • ABS Plastic
  • Powder-coated steel base plate with 100mm VESA (M4 6mm max)
  • Powder-coated steel reinforced back plate
Size weight
  • 195 x 220 x 62 mm / 7.68 x 8.66 x 2.44 in
  • 1070g / 2.36lb
