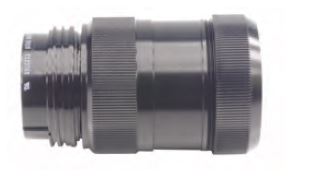

Veam VSC01SC-B03
19 Pin In-Line Female Spider Clamp for SO Breakin, Crimp Pins
Item #:VSC01SC-B03
Available: In Stock
Veam VSC 19 pin female inline connector, crimp, with spider backshell for SO cables up to 0.61" diameter (15.4 mm)
20.00
Each
Quantity:
| Quantity | Price |
| 1.0 | 20.00 |
Veam VSC is a threaded coupling multi-pin cylindrical connector for lighting applications. Veam is well known for the quality and ruggedness of it's popular quarter-turn lock CIR Series and has utilized CIR's superior design concepts to provide a very rugged version of the Socapex SL-419 connector family
Product Features
Product Features
- Sealed to IP67 when mated
- Socapex compatible
- Machined aluminum shells
- Black, hard anodized (non-conductive) finish for scratch and wear resistant surface
- Heavy duty ribbed coupling ring to provide easy manual coupling and uncoupling
- Six circuit identification on front and rear of inserts
- Recessed area in back of Female insert to accept grounding disk
- Seven forward contacts for "First make, last break" grounding
- Insulating sleeve
Technical Parameters
- Voltage Rating: 700 VDC, 500 VAC
- Current Rating: 41A max; 25A Rated
- Temperature Rating: -55° C to +125° C
- Contact Plating: Gold
