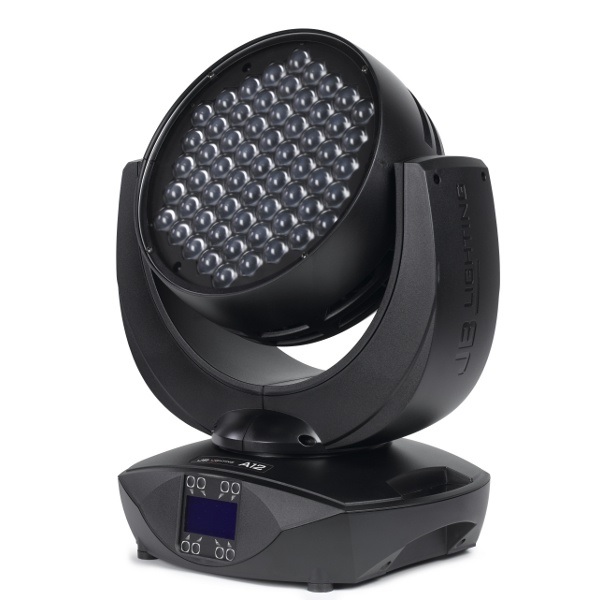

JB Lighting A12

RGBW LED Wash Fixture w/Zoom
Item #:VLEDA12RGBW
Available: Special Order/Direct Ship
A total of 61 RGBW multi-chip LEDs in the 15W class are integrated in the newly developed optical zoom system of the A12. Due to the hexagonally shaped lenses, the luminous field gives a homogenous overall impression, almost comparable to that of a single light source. The A12 comes with an enormous brightness and depending on the colour it can replace a washlight with a 1.200W to 1.500W discharge lamp. The zoom covers a remarkable range of 4° to 48°. As with previous LED washers by JB-lighting, the A12 is characterized by sophisticated software. Special attention was paid to the dimming behavior. The A12 features a high resolution true-colour dimmer 0-100%. For demanding work, various control curves for RGBW are available as well as different dimming curves and camera modes, which ensure flicker free performance in television studios.
7469.14
Each
Quantity:
Quantity Price
48.0 7020.99
24.0 7170.37
12.0 7319.76
1.0 7469.14
Optics and light source
  • Zoom system 4° - 48° (4°-33° 1/2 Peak, 8°-48° 1/10 Peak)
  • Highly efficient lens system
  • 61 RGBW multichip LEDs in the 15W class
  • Hexagonal lens form for homogenous light field

Effects
  • 450° Pan / 330° Tilt
  • Separate CTC channel
  • Optimized colour mixing performance due to multichip LEDs combined with newly designed optical system
  • High-resolution dimmer 0%-100%
  • Colour-true dimming
  • Electronic strobe with pulse and random effects
  • Segment control of LEDs rings

Movement
  • High-resolution three-phase stepper motors
  • Precise and fast movements
  • Low noise operation

Control
  • DMX 512
  • Integrated DMX-in module for JB-lighting Wireless DMX
  • Illuminated graphics display, can be rotated electronically
  • Stand-alone mode

Power consumption
  • 850W maximum
  • Typical consumption: 490W

Construction
  • Compact housing
  • Powercon In and Out
  • 3-pin and 5-pin XLR connectors
  • Temperature-controlled fans
  • Omega bracket for fast and comfortable mounting in every position
  • Dimensions: W 437 x D 308 x H 536mm
  • Weight: 15,7 kg

Accessories
  • Wireless TRX
  • 2-unit flight case
