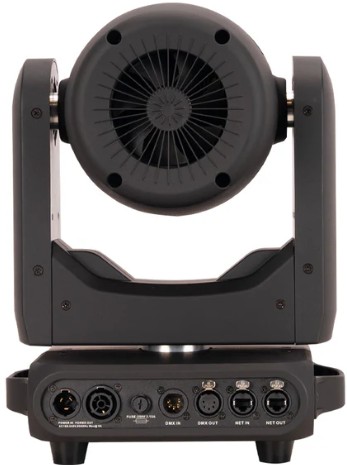

ADJ Vizi Xtreme

Beam wash Moving Head with Dynamic Effects
Item #:VIZ900
Available: Special Order/Direct Ship
Ultra-fast and incredibly compact, but also extremely powerful, the Vizi Xtreme is a beam wash moving head offering powerful output, dynamic effects – including optional 360° continuous pan/tilt movement, and precise control. It features four, individually controlled, 60-watt RGBL color mixing LEDs surrounded by an additional ring of RGBW ‘eye candy’ LEDs. Designed for maximum versatility and speed, it delivers brilliant color mixing, motorized zoom from 3°–45°, and advanced control connectivity for professional lighting applications.
1079.99
Each
Quantity:
Quantity Price
1.0 1079.99
The Vizi Xtreme is a beam wash moving head engineered to deliver exceptional speed, intense output and mesmerising 360° continuous rotation from an extremely compact fixture. Despite its small footprint, this cutting-edge luminaire delivers formidable output and a rich palette of dynamic visual effects, making it ideal for a wide variety of entertainment lighting applications, including concert tours, club installations, broadcast environments, and event production.
Specifications
TYPE: 240W RGBL Beam Wash Moving Head
SOURCE:
PRIMARY:
4x 60W RGBL LED's
Color Temperature: 2700K - 10,000K
20,000 Hour Average LED Life*
RING:
48x 0.5W RGBW LED's
20,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA (PRIMARY LED's):
2,700 Lumens
CRI: 60
COLOR:
Primary: 4x Red, Green, Blue and Lime
Ring: 48x RGBW
EFFECTS:
Individual pixel control for primary RGBL LED's
Six-zone control for ring RGBW LED's (8 LED's per zone)
Motorized zoom range: 3°–45°
Electronic strobe rate: 1Hz–10Hz
CONTROL / CONNECTIONS:
(5) DMX Channel Modes (Basic 28 / Standard 40 / Extended 73 / Standard CMY 54 / Extended CMY63)
DMX, RDM, sACN and ArtNet
Aria X2 Wireless Management System
NFC System
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
IP20 5 pin XLR DMX In/Out
IP20 RJ45 In/Out
IP65 Locking Power In/Out
PAN / TILT:
Pan: 540/360° (360° Continuous Pan Rotation Option)
Tilt: 270/360° (360° Continuous Tilt Rotation Option)
Pan/Tilt Locks
3 Phase Motors
SIZE / WEIGHT:
Length: 10.9" (276mm)
Width: 7.87" (200mm)
Vertical Height: 14.34” (364.2mm)
Weight: 15.4 lbs. (7kg)
ELECTRICAL / THERMAL:
AC 100-240V - 50/60Hz
Max Power Consumption: 316W
Power Link: 5 units @120V., 10 units @ 230V.
Max ambient temperature: -13°F to 113°F (-25°C to 45°C)
Max housing temperature: ?°F (?°C)
TECHNICAL DATA:
DB Rating @ 3ft.: ?dB
BTU: 0.64
BTU/H: 2301.75
APPROVALS / RATINGS:
CE
FCC
cETLus (Pending)
IP20
INCLUDED ACCESSORIES:
(1) Outdoor Locking Power cable (6.5ft.)
(2) Omega brackets (107mm)
(1) Safety Cable, 3mm (1.97ft.)
