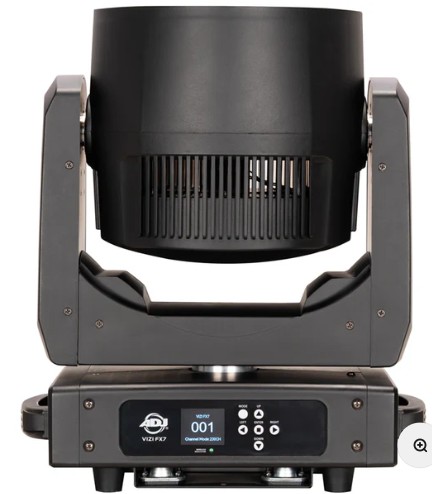

ADJ Vizi FX7

420W RGBL Moving Head Beam / Effect / Wash
Item #:VIZ563
Available: Special Order/Direct Ship
Offering four unique effects in one powerful fixture, a beam, a wash, a multi-colored kaleidoscope, and a LED ring effect, the Vizi FX7 is a professional moving head luminaire ideal for event production and venue integration. With individual pixel control over the primary LEDs and a variety of built-in FX programs, the Vizi FX7’s four distinct functions can be used individually or combined to create a huge variety of aerial effects.
1579.99
Each
Quantity:
Quantity Price
1.0 1579.99
SOURCE:
Main + Kaleidoscope Center
7 x 60-Watt RGBL LED's
Color Temperature: 2800K ~ 8,500K
50,000 Hour Average LED Life*
Ring
60 x 0.5-Watt RGB LED's
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA:
TBA (Zoomed Out, Full On)
CRI: TBA
COLOR:
Red, Green, Blue and Lime x6 Primary LED's
Multi-Color Kaleidoscope Center
Red, Green and Blue Ring LED's
Built-In Color Macros
2,700K ~ 10,000K Linear White Color Temperature Control
Color Temperature Presets: 2,800, 3,200, 3,600, 4,500, 5,000, 5,600, 6,200, 6,800, 7,500 and 8,500K
EFFECTS:
Bi-Directional Primary LED Beam Rotation
Individual Primary LED Pixel Control
Bi-Directional Mulit-Color Rotating Kaleidoscope
Built-In FX Programs with Speed Control
Motorized Zoom: 8° to 38°
1Hz ~20Hz Strobe Rate (Electronic)
CONTROL / CONNECTIONS:
(4) DMX Channel Modes (31CH / 55CH / 57CH / 60CH and 237CH) Plus 1 User Definable DMX Mode
DMX and RDM
Aria X2 Wireless Management System
Selectable LED Refresh Rates (900 Hz~25K Hz)
Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2 and user settable Dim Speed (0.1S~10S)
4 Dim Curves: Square, Linear, Inv. Square and S. Curve
0-100% dimming
Fan Cooled
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
5 pin XLR DMX In/Out
IP65 Locking Power In/Out
PAN / TILT:
Pan: 540°
Tilt: 190°
3 Phase Motors
SIZE / WEIGHT:
Length: 14.39" (365mm)
Width: 8.66" (220mm)
Vertical Height: 17.11” (434.4mm)
Weight: 29.8 lbs. (13.5kg)
ELECTRICAL / THERMAL:
AC 100-240V - 50/60Hz
Max Power Consumption: 400W (3.7 Amps @ 120V)
Power Link: 3 unit @120V., 6 units @ 230V.
Max ambient temperature: -13°F to 113°F (-25°C to 45°C)
Max housing temperature: ?°F (?°C)
TECHNICAL DATA:
DB Rating @ 3ft.: ?dB
BTU: ?
BTU/H: ?
 APPROVALS / RATINGS:
cETLus (Control # 5027824)
CE
FCC
UKCA
IP20
INCLUDED ACCESSORIES:
(1) Outdoor Locking Power cable (6ft.)
(2) Omega brackets (107mm)
