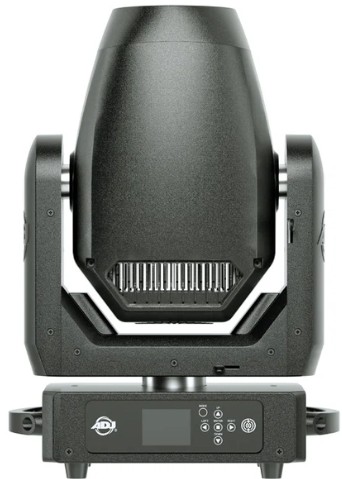

ADJ Protege XS
Beam / Spot / Wash Moving Head Luminaire
Item #:PRO300
Available: Special Order/Direct Ship
Offering an impressive feature set from a compact fixture, the Protégé XS is an LED-powered Beam/Spot/Wash moving head spot luminaire. Designed for applications that require a small unit that delivers big creative potential, it harnesses the power of a 250-watt LED engine to deliver an output of up to 9800 lumens. Packed with beam-shaping tools, it features motorized zoom and focus, two 8-position color wheels, two GOBO wheels (one rotating and replaceable, the other fixed), two rotating prisms (linear and circular), a frost filter and an animation wheel. Ensuring simple integration into any lighting system, the unit features both 5-pin DMX sockets and integrated Aria X2 wireless management.
1729.99
Each
Quantity:
| Quantity | Price |
| 1.0 | 1729.99 |
Compact in size yet mighty in performance, the ADJ Protégé XS is a next-generation LED-powered Beam/Spot/Wash moving head spot luminaire that delivers exceptional creative potential from a streamlined form factor. Harnessing the output of a potent 250-watt white LED engine, it produces up to 9,800 lumens of crisp, high-intensity light. Designed to replace ADJ’s popular Focus Spot 4Z and 5Z models, the Protégé XS builds upon their proven reliability with enhanced optical precision, increased output, and refined effects.
Specifications
SOURCE:
250W White LED Engine
Color Temperature: 8500K (+/-200k)
20,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA:
9,800 Lumens
CRI: 73
COLOR:
2x Color Wheels
8 colors per color wheel
Color Wheel 1: Red, Blue, Green, Orange, Quad Colorï¼Yellow, Magenta, Congo Blue
Color Wheel 2: Dark Red, Light Turquiosise, UV, Pink, Quad Color, Lavender, CTO 3200K, CTB 9000K
GOBOS:
1x Rotating Gobo Wheel: 7 Interchangeable, glass gobos (OD: 16mm, Image: 10mm)
1x Static Gobo Wheel: 11 Fixed, aluminum gobos, including two beam reducers
EFFECTS:
Motorized Zoom: 4.8° ~ 38°
2x Prisms: 1x 6 Facet Linear & 1x 6 Facet Circular (Overlay Capable)
Heavy Frost Filter for Smooth Wash Effects
Animation Wheel on Movable Arm
Motorized Focus
1Hz ~10Hz Strobe Rate (Electronic)
CONTROL / CONNECTIONS:
(3) DMX Channel Modes (Basic / Standard / Extended)
DMX, RDM
Aria X2 Wireless Management System
NFC System
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
5 pin XLR DMX In/Out
IP65 Locking Power In/Out
PAN / TILT:
Pan: 540/630° and separate 360° Continuous Pan Rotation
Tilt: 270°
Pan/Tilt Locks
3 Phase Motors
SIZE / WEIGHT:
Length: 14.3" (364mm)
Width: 9.8" (248mm)
Vertical Height: 20” (509mm)
Weight: 39 lbs. (17.85kg)
ELECTRICAL / THERMAL:
AC 100-240V - 50/60Hz
Max Power Consumption: 616W
Power Link: 2 units @120V., 5 units @ 230V.
Max ambient temperature: -13°F to 113°F (-25°C to 45°C)
Max housing temperature: ?°F (?°C)
TECHNICAL DATA:
DB Rating @ 3ft.: ?dB
BTU: ?
BTU/H: ?
APPROVALS / RATINGS:
CE
FCC
cETLus (Pending)
IP20
INCLUDED ACCESSORIES:
(1) Outdoor Locking Power cable (6.5ft.)
(2) Omega brackets (107mm)
(1) Safety Cable, 3mm (1.97ft.)
Specifications
SOURCE:
250W White LED Engine
Color Temperature: 8500K (+/-200k)
20,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA:
9,800 Lumens
CRI: 73
COLOR:
2x Color Wheels
8 colors per color wheel
Color Wheel 1: Red, Blue, Green, Orange, Quad Colorï¼Yellow, Magenta, Congo Blue
Color Wheel 2: Dark Red, Light Turquiosise, UV, Pink, Quad Color, Lavender, CTO 3200K, CTB 9000K
GOBOS:
1x Rotating Gobo Wheel: 7 Interchangeable, glass gobos (OD: 16mm, Image: 10mm)
1x Static Gobo Wheel: 11 Fixed, aluminum gobos, including two beam reducers
EFFECTS:
Motorized Zoom: 4.8° ~ 38°
2x Prisms: 1x 6 Facet Linear & 1x 6 Facet Circular (Overlay Capable)
Heavy Frost Filter for Smooth Wash Effects
Animation Wheel on Movable Arm
Motorized Focus
1Hz ~10Hz Strobe Rate (Electronic)
CONTROL / CONNECTIONS:
(3) DMX Channel Modes (Basic / Standard / Extended)
DMX, RDM
Aria X2 Wireless Management System
NFC System
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
5 pin XLR DMX In/Out
IP65 Locking Power In/Out
PAN / TILT:
Pan: 540/630° and separate 360° Continuous Pan Rotation
Tilt: 270°
Pan/Tilt Locks
3 Phase Motors
SIZE / WEIGHT:
Length: 14.3" (364mm)
Width: 9.8" (248mm)
Vertical Height: 20” (509mm)
Weight: 39 lbs. (17.85kg)
ELECTRICAL / THERMAL:
AC 100-240V - 50/60Hz
Max Power Consumption: 616W
Power Link: 2 units @120V., 5 units @ 230V.
Max ambient temperature: -13°F to 113°F (-25°C to 45°C)
Max housing temperature: ?°F (?°C)
TECHNICAL DATA:
DB Rating @ 3ft.: ?dB
BTU: ?
BTU/H: ?
APPROVALS / RATINGS:
CE
FCC
cETLus (Pending)
IP20
INCLUDED ACCESSORIES:
(1) Outdoor Locking Power cable (6.5ft.)
(2) Omega brackets (107mm)
(1) Safety Cable, 3mm (1.97ft.)
