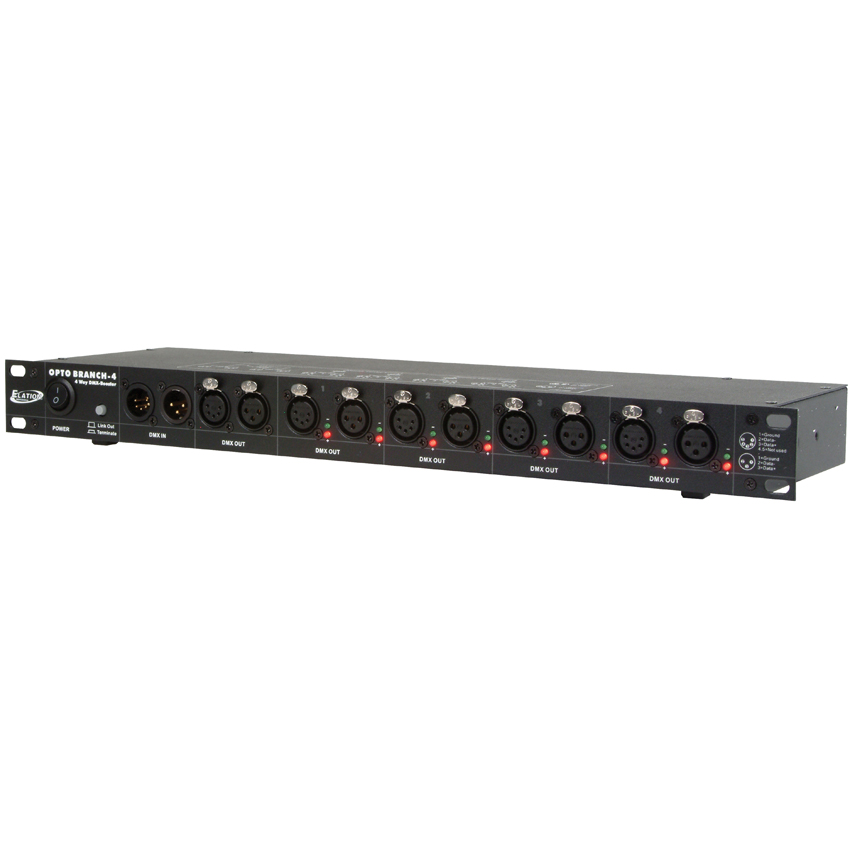

Elation Opto Branch 4

1 In 4 Out DMX Opto Splitter
Item #:OPTO BRANCH 4
Available: Special Order/Direct Ship
The OPTO BRANCH 4 is a single rack space, 4-way distributor/booster with 3pin and 5pin XLR input and output jacks. This unit takes the incoming DMX signal and splits it to four (4) separate outputs that are electronically isolated from each other to ensure uninterrupted data. In addition, each output has dedicated drivers to boost the incoming signal, and the unit includes a link / terminate button for easy troubleshooting.
You must be logged in to order this item.
Log in here
FEATURES
4-Way DMX Data Splitter / Fully DMX512 (1990) Compliant
Link / Terminate Button for Easy Troubleshooting
DMX Status LED Indicator
(1) 3pin + (1) 5pin Neutrik XLR Isolated Inputs
(1) 3pin + (1) 5pin Neutrik XLR Passive Loop Output
(4) 3pin + (4) 5pin Neutrik XLR Isolated Outputs

SIZE / WEIGHT
19" (482mm) x 5.7" (145mm) x 1.7" (44mm)
5.3 lbs. (2.4kg)

ELECTRICAL
AC 120V - 60Hz

APPROVALS
CE |
