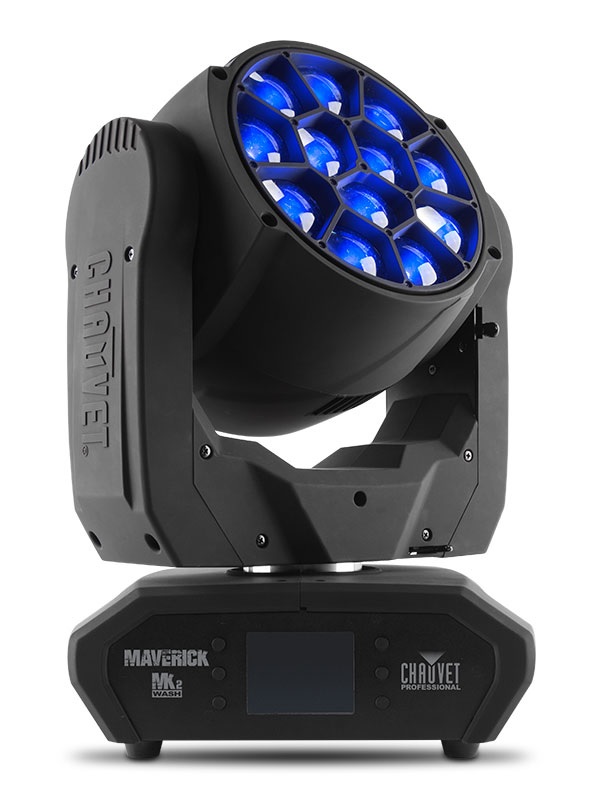

Chauvet Maverick MK2 Wash

RGBW LED Moving Yoke Wash w/Zoom
Item #:MAVERICKMK2WASH
Available: Special Order/Direct Ship
Maverick MK2 Wash rewrites the rules on wash fixtures with its flawlessly even output, custom designed optics, full pixel mapping, virtual gobo wheel with background colors, pre-programmed colors and 7º-49º zoom range. Powered by 12 (40 W) Osram RGBW LEDs, it has the muscle to handle any application, even aerial washing, with ease. Take control with DMX, sACN, Art-Net, Kling-Net or W-DMX.
You must be logged in to order this item.
Log in here


Optical

  • Light Source: 12 LEDs (quad-color RGBW) 40 W, (2.6 A), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K
  • Beam Angle: 5° to 36°
  • Field Angle: 7° to 49°
  • Zoom Angle: 7° to 49°
  • Illuminance (7°): 19,000 lux @ 5 m
  • Illuminance (49°): 800 lux @ 5 m
  • PWM Frequency: 900 Hz

Dynamic Effects

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: No
  • Color Temperature Presets: Yes
  • Move-in-Black: Yes
  • Dim Curves: 4

Construction / Physical

  • Dimensions: 12.72 x 9.17 x 18.54 in (323 x 233 x 471 mm)
  • Weight: 32.8 lb (14.8 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

Connections

  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: Art-Net, sACN, Kling-Net, DMX, W-DMX
  • DMX Channels Single Mode: 20, 69, 115
  • DMX Channels Dual Mode - Function: 8, 20, 26
  • DMX Channels Dual Mode -€“ Pixel: 36, 48, 60
  • Art-Net Channels Single Mode: 20, 69, 115
  • Art-Net Channels Dual Mode -“ Function: 8, 20, 26
  • Art-Net Channels Dual Mode - Pixel: 36, 48, 60

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 651 W, 5.51 A @ 120 V, 60 Hz
  • Power and Current: 629 W, 3.03 A @ 208 V, 60 Hz
  • Power and Current: 609 W, 2.53 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP20, dry location

What's Included

  • MK2 Wash
  • Seetronic Powerkon IP65 power cord
  • Omega bracket with mounting hardware
