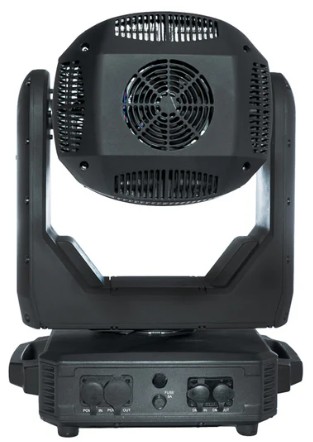

ADJ Hydro Beam CMY

IP65-Rated Automated Beam Luminaire
Item #:HYD359
Available: Special Order/Direct Ship
Offering power, precision and reliability, the Hydro Beam CMY is a versatile IP65-rated automated beam luminaire. Harnessing the power of an OSRAM Sirius HRI 310W PRO discharge lamp, focused through precision-engineered optics and projected from a high-quality glass lens, it generates a razor-sharp 2-degree beam. An extensive feature set is headlined by CMY color mixing and also includes 17 static GOBOS, two rotating prisms, a frost filter, and integrated Aria X2 wireless DMX control and remote fixture management. Featuring lightning-fast movement, this robust fixture is designed to create impressive aerial effects for large indoor as well as outdoor events.
2499.99
Each
Quantity:
Quantity Price
1.0 2499.99
Powerful and precise, the Hydro Beam CMY is an IP65-rated beam fixture built to excel in the most demanding environments. Designed for outdoor festivals, stadium tours, theme parks, and large-scale events, it delivers the punch, speed, and reliability required by lighting professionals working both indoors and out. Powered by an OSRAM Sirius HRI 310W PRO discharge lamp, the fixture produces an ultra-bright, razor-sharp 2-degree beam that cuts effortlessly through ambient light, haze, and fog. Its high-quality glass lens and internal optics ensure consistent output and exceptional beam definition, while an advanced motorized focus system with 16-bit precision keeps every projection crisp at any distance.
Specifications
Light Source:
OSRAM Sirius HRI 310W PRO Discharge Lamp (6,000 hr.)
Color temperature: 7850K (+/- 500K)
CRI: 86 (+/- 5)
Features:
CMY Color Mixing
On-Board Wireless DMX
Motorized Focus + 16-bit fine focus
2-degree beam angle
Frost Filter to create wash effect
High quality glass lens
2 Rotating prisms:
0-100% smooth dimming
Pan/Tilt locks
Various strobe speeds
OTA, wireless, firmware updates
Fan cooled
Color Wheel:
14 dichroic colors + white (Includes CTO (3200K), CTB (9000k) & UV)
Indexable color wheel for split colors
Separate Multi-Color Effect
GOBO Wheel:
17 static GOBOs + open (4 GOBOs are beam reducers)
GOBO Shake Effect
 Prism Wheels:
2 Rotating prisms
16 facet circular and 6 facet linear prisms
Prisms Overlay
Control:
Protocols: DMX512, RDM, Aria X2, NFC
Control Mode: DMX512 & Manual (On-board Controls)
2 DMX Channel Modes: 20/24 Channels
Color LCD display with 4-button function menu
0-100% smooth dimming
Various strobe speeds
With Wired Digital Communication Network
Pan/Tilt:
Pan: 540 degrees (plus 16-bit fine pan)
Tilt: 270 degrees (plus 16-bit fine tilt)
3-phase, High Speed, Pan/Tilt motors
Connections:
DMX Connections: Seetronic IP65 Rated, 5-pin DMX In/Out (Data link max: 32 fixtures)
Power Connections: IP65 locking power In/Out connections to daisy chain power
Electrical:
Multi-voltage operation: 100-240V, 50/60Hz
Max power consumption: 450W (@120V), 4300W (@230V)
Fuze Protected: 6.5A
Dimensions & Weight:
Dimensions: 15” (L) x 11.2” (W) x 23” (H) / 381.6 x 284.5 x 568.5mm
Weight: 56 lbs. / 25.6 kg.
Approvals / Ratings
CE
cETLus (Pending)
FCC
IP65
What’s Included:
2x Omega Brackets (107 Type)
2M, outdoor locking 14AWG power cord
