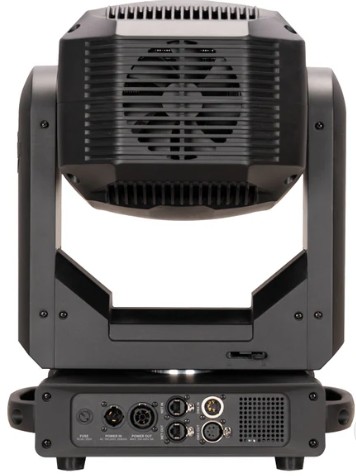

ADJ Focus CMY Compact

Beam, Spot, or Wash Luminaire
Item #:FOC871
Available: Special Order/Direct Ship
Delivering best-in-class power and versatility, the ADJ Focus CMY Compact is an automated luminaire capable of functioning interchangeably as a beam, spot or wash. Powered by a 400-watt LED engine it delivers output of up to 14,500 lumens. An extensive suite of beam shaping tools begins with full CMY + CTO color mixing and also includes two GOBO wheels, two rotating prisms, two frost filters, and Aria X2 wireless, as well as motorized zoom (3°~52°) and focus. All of this is packed into a compact and robust fixture that weighs less than 45 lbs. (20kg).
3499.99
Each
Quantity:
Quantity Price
1.0 3499.99
Offer exceptional performance in a compact form factor, the ADJ Focus CMY Compact is a powerful and versatile automated luminaire designed to meet the demands of modern lighting designers. Equipped with a potent 400-watt LED engine, it delivers an impressive 14,500 lumens of output, making it equally at home on concert stages, in theatres, at corporate events, or within houses of worship. Its motorized zoom range of 3° to 52° allows it to function interchangeably as a beam, spot, or wash, providing maximum flexibility from a single fixture.
Specifications
SOURCE
400W LED Engine
Color Temperature: 6900k (+/-350k)
20,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
14,500 Total Lumens
CRI: 64 (80 or 90 with HCRI Filter)
EFFECTS
6-Facet Circular & 6-Facet Linear Rotating Prisms
2x Frost Filters (Light and Heavy)
Motorized Zoom: 3°~52°
Motorized Focus
Electronic Dimming & Strobe: 1-20Hz
COLOR
Full CMY color mixing
Variable CTO (3200K to 8500K)
Colors Wheel with 7 dichroic colors (Includes High CRI Filter in slot 7)
GOBOS
(2) Gobo Wheels
#1 - (8) Rotating Glass Gobos (Interchangeable and Indexable)
#2 - (10) Static Glass Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (Basic / Standard / Extended)
DMX, RDM, sACN and ArtNet
Aria X2 Wireless Management System
NFC System
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
RJ45 In/Thru Network Ports
3 & 5 pin XLR DMX In/Out
IP65 Locking Power In/Out
With Wired Digital Communication Network
PAN / TILT
Pan: 540/630-degrees
Tilt: 270-degrees
Pan & Tilt Locks
SIZE / WEIGHT
Length: 14.2" (360mm)
Width: 9.3" (234mm)
Vertical Height: 23.5” (597mm)
Weight: 44.5 lbs. (20.2kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption: 450W @ 220V.
Max ambient temperature: -13°F to 113°F (-25°C to 45°C)
Max housing temperature: ?°F (?°C)
TECHNICAL DATA
DB Rating @ 3ft.: ?dB
BTU: ?
BTU/H: ?
 APPROVALS / RATINGS
CE
FCC
ETL (Pending)
IP20
INCLUDED ACCESSORIES
(1) Power cable
(2) Omega brackets
