Home  > Elation eNode4

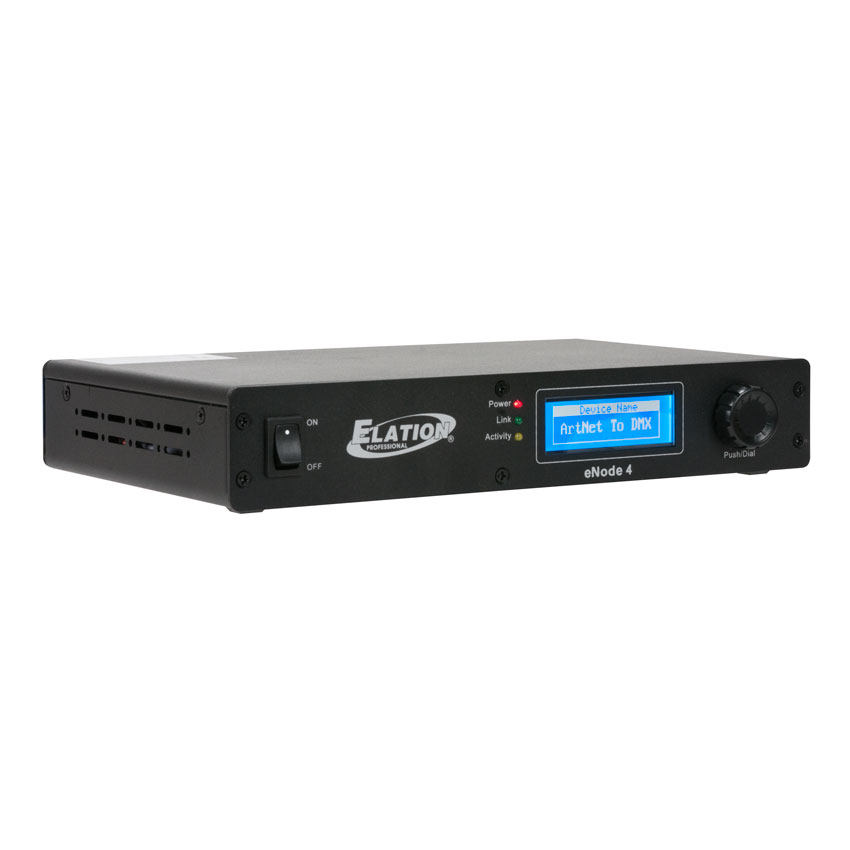

Elation eNode4

4 Universe DMX - Artnet Converter
Item #:ENO406
Available: Special Order/Direct Ship
The new eNODE4 features (4) universal DMX ports, (2) RJ45 TCP/IP 10/100M Ethernet ports, auto MDI/MDIX, DMX-512, and ArtNet support, ArtNet-DMX bilateral signal conversion,a DMX splitter function (1 input / 3 outputs), and broadcast and backup modes.
You must be logged in to order this item.
Log in here
FEATURES
(4) Universal DMX Ports (can be set as Input or Output)
(2) RJ45 TCP/IP 10/100M Ethernet Connections
Rotary Menu Wheel / Function Selection Button
LCD Menu / Function Display
PowerCON Power In
Auto MDI/MDIX, DMX-512, and ArtNet Support
ArtNet - DMX Bilateral Signal Conversion
DMX Splitter Function (1Input / 3 Outputs)
LCD Display & LED Indicators
Broadcast Mode (One Device Transmits Same Signal to Other Connected Devices)
Backup Mode

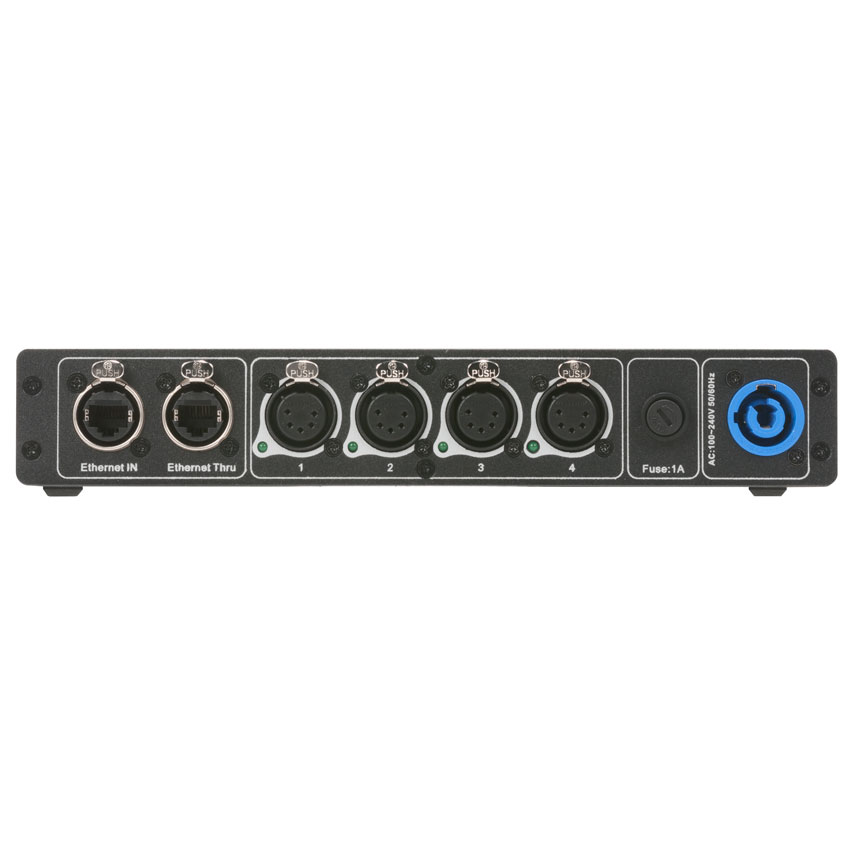

CONTROL / CONNECTIONS
(4) 5pin DMX Ports
(2) RJ45 TCP/IP 10/100M Ethernet Connections
Rotary Menu Wheel / Function Selection Button
LCD Menu / Function Display
PowerCON Power In

SIZE / WEIGHT
Length: 10.0" (255mm)
Width: 6.8" (173mm)
Vertical Height: 1.75" (43mm)
Weight: 3.5 lbs. (1.6kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
5W Max Power Consumption
35.6°F (2°C) to 113°F (45°C)

APPROVALS / RATINGS
CE | cETLus | IP20

INSTALLATION
Any Flat Surface Or On A Truss With Included Bracket

INCLUDED ITEMS
(1) 5 ft (1.5m) powerCON Cable
(2) EtherCON Cable Connector Carrier
