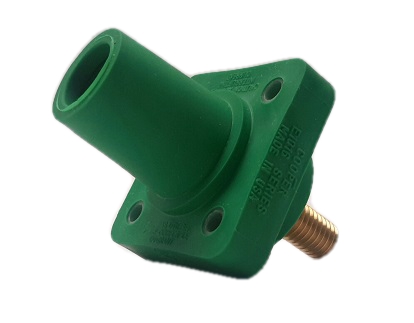

Cam-Lok E1016
Panel Mount, Female, Threaded Stud Long, Green
Item #:E1016-1635S
Available: In Stock
Cam-Lok J-Series 1016 panel mount, female, threaded stud - 1/2-13 x
1-1/8"
17.15
Each
Quantity:

Quantity | Price |
1.0 | 17.15 |

Cable
size 2/0-4/0
600V AC/DC, up to 400A continuous
NEMA 3R
FEATURES
- Double
cam principle provides a positive, vibration-proof connection
- Self-compensating
for wear
- No
moving contact surfaces, eliminating arcing or burning
- Superior
electro-mechanical connections
- Locked
contacts will withstand a pulling force of 1,000 lbs
- 1/3
of a turn assures a high pressure contact approaching 600 lbs. per sq. in.
providing minimum resistance
- Contacts
carefully machined from a high conductivity brass to a smooth sliding fit
and easy locking action
- Product
body molded from colorfast material, color-coded for easy phase
identification
- Receptacles
are watertight elastomeric, terminals are rubber
- Recessed
contacts protected by insulating jacket that extends beyond contact ends
for safety
- Receptacles
are safety insulated for direct mounting to steel panels
TESTING & CODE COMPLIANCE
- Listed to UL498
- CSA Certified to C22.2
MATERIAL CHARACTERISTICS
- Insulator: TPE
- Environmental: NEMA 3R
- Temperature Rating: -40º C to
105º C

No. | Part No. | Item Description | Qty Req. | Price | Qty |
1 | 1-000-015-0019 |
Brass Nut 1/2" x 13 Thread
|
1 |
0.98
Each
|
|
1 | 1-000-015-0022 |
Silicon Bronze 1/2" Lock Washer
|
1 |
0.60
Each
|
|
