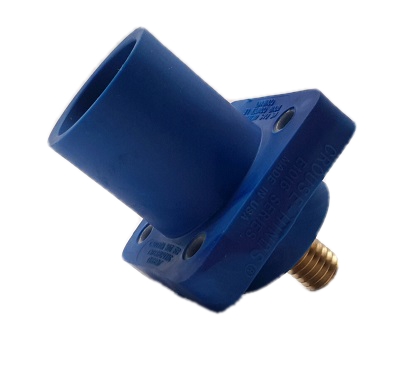

Cam-Lok E1016

Panel Mount, Male, Threaded Stud, Blue
Item #:E1016-1612
Available: Special Order/Direct Ship
 Cam-Lok J-Series 1016 panel mount, male, threaded stud - 1/2-13 x 3/4"

17.69
Each
Quantity:
Quantity Price
1.0 17.69

Cable size 2/0-4/0
600V AC/DC, up to 400A continuous
NEMA 3R


FEATURES

  • Double cam principle provides a positive, vibration-proof connection
  • Self-compensating for wear
  • No moving contact surfaces, eliminating arcing or burning
  • Superior electro-mechanical connections
  • Locked contacts will withstand a pulling force of 1,000 lbs
  • 1/3 of a turn assures a high pressure contact approaching 600 lbs. per sq. in. providing minimum resistance
  • Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
  • Product body molded from colorfast material, color-coded for easy phase identification
  • Receptacles are watertight elastomeric, terminals are rubber
  • Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
  • Receptacles are safety insulated for direct mounting to steel panels


TESTING & CODE COMPLIANCE

  • Listed to UL498
  • CSA Certified to C22.2


MATERIAL CHARACTERISTICS

  • Insulator: TPE
  • Environmental: NEMA 3R
  • Temperature Rating: -40º C to 105º C
Enter the quantity for each needed part and click add to cart
No. Part No. Item Description Qty Req. Price Qty
1 1-000-015-0019
Brass Nut 1/2" x 13 Thread
1
0.98
Each
1 1-000-015-0022
Silicon Bronze 1/2" Lock Washer
1
0.60
Each
