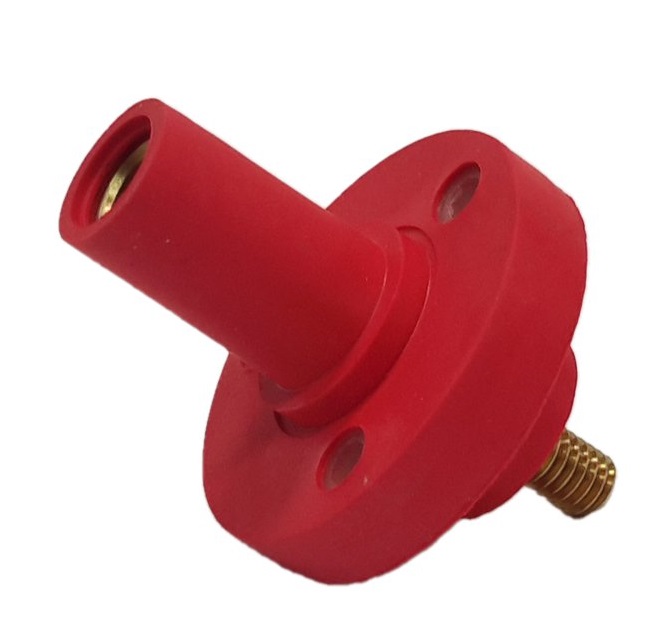

Cam-Lok E1015
Panel mount, Female, Threaded Stud, Red
Item #:E1015-1627
Available: Special Order/Direct Ship
Cam-Lok J-Series 1015 panel mount, female, threaded stud - 5/16-18 x 1/2"
27.92
Each
Quantity:

Quantity | Price |
1.0 | 27.92 |

Cable size #8 - #4 AWG
600V AC/DC,
up to 150A continuous
NEMA 3R
FEATURES
TESTING & CODE COMPLIANCE
MATERIAL CHARACTERISTICS
600V AC/DC,
up to 150A continuous
NEMA 3R
FEATURES
- Double cam principle provides a positive, vibration-proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning
- Superior electro-mechanical connections
- Locked contacts will withstand a pulling force of 1,000 lbs
- 1/3 of a turn assures a high pressure contact approaching 600 lbs. per sq. in. providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Product body molded from colorfast material, color-coded for easy phase identification
- Receptacles are watertight elastomeric, terminals are rubber
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
- Receptacles are safety insulated for direct mounting to steel panels
TESTING & CODE COMPLIANCE
- Listed to UL498
- CSA Certified to C22.2
MATERIAL CHARACTERISTICS
- Insulator: TPE
- Environmental: NEMA 3R
- Temperature Rating: -40º C to 105º C
