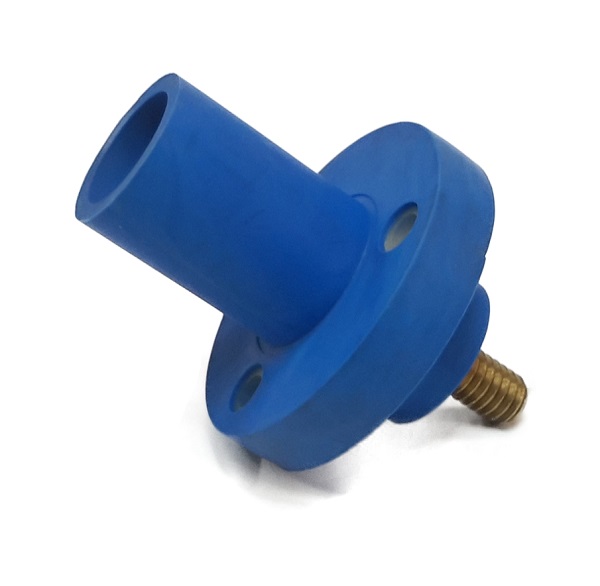

Cam-Lok E1015

Panel mount, Male, Threaded Stud, Blue
Item #:E1015-1606
Available: In Stock
Cam-Lok J-Series 1015 panel mount, male, threaded stud - 5/16-18 x 1/2"

26.98
Each
Quantity:
Quantity Price
1.0 26.98
Cable size #8 -€“ #4 AWG
600V AC/DC,
up to 150A continuous
NEMA 3R

FEATURES
  • Double cam principle provides a positive, vibration-proof connection
  • Self-compensating for wear
  • No moving contact surfaces, eliminating arcing or burning
  • Superior electro-mechanical connections
  • Locked contacts will withstand a pulling force of 1,000 lbs
  • 1/3 of a turn assures a high pressure contact approaching 600 lbs. per sq. in. providing minimum resistance
  • Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
  • Product body molded from colorfast material, color-coded for easy phase identification
  • Receptacles are watertight elastomeric, terminals are rubber
  • Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
  • Receptacles are safety insulated for direct mounting to steel panels

TESTING & CODE COMPLIANCE
  • Listed to UL498
  • CSA Certified to C22.2

MATERIAL CHARACTERISTICS
  • Insulator: TPE
  • Environmental: NEMA 3R
  • Temperature Rating: -40º C to 105º C
