Home  >  DMX Solutions / Wireless DMX  >  Elation Lighting  > Elation DMX-Branch 4

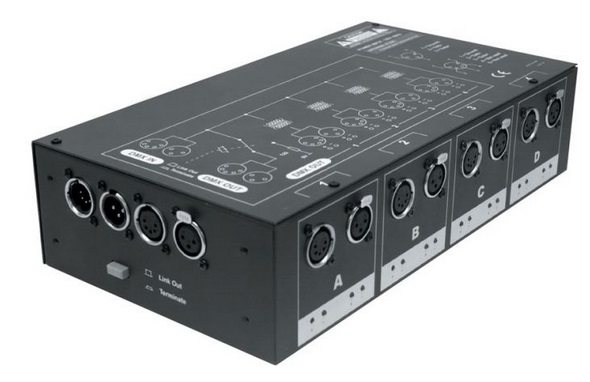

Elation DMX-Branch 4

1 In 4 Out DMX Splitter / Booster
Item #:DMX-BRANCH 4
Available: Special Order/Direct Ship
DMX-BRANCH/4™ is a DMX signal splitter/booster that splits a single DMX signal into four separate outputs, as well as boosts the signal for extended cable runs usually associated with large permanent installations. DMX-BRANCH/4™ includes a set of 3pin and 5pin DMX inputs, a set of 3pin and 5pin DMX outputs for linking up to 4 additional units, 4 sets of 3pin and 5pin isolated DMX outputs, a link out/terminate switch, and DMX data LED indicators for each of the four DMX outputs. Flexible installation options are possible like truss mounting using the included 3/16” (4.7625mm) threaded hole for a clamp (not included), and a 19-inch rack mounting kit is included.
You must be logged in to order this item.
Log in here

Features

  • 3pin & 5pin DMX Inputs
    3pin & 5pin DMX Outputs (thru)
    4-Way 3pin & 5pin Isolated DMX Outputs
    Link Out / Terminate Button
    Linkable Up To (4) Units
    DMX Data LED Indicators
    19-inch Rack Mount Kit (included)
    3/16” (0.1875mm) Threaded Hole for Clamp (not included)

Specifications

SIZE / WEIGHT

  • Length: 13.0” (330mm)
  • Width: 7.25” (184mm)
  • Vertical Height: 3.0” (76mm)
  • Weight: 7.0 lbs. (3.2 kg)


ELECTRICAL / THERMAL

  • AC 120V - 60Hz
  • Fuse: 5A 250V 5x20mm


INCLUDED ITEMS

  • 19-inch Rack Mount Kit
