Cam-Lok E1015

Protective Boot, Female, Black
Item #:A100868-7
Available: Special Order/Direct Ship

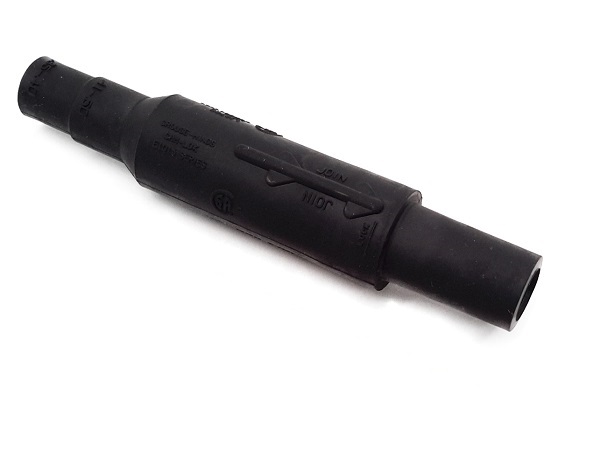

Cam-Lok J-Series E1015 female insulator boot, black - Boot Only. For use with single set-screw cable mount contact. Fits #8-#4 cable

9.12
Each
Quantity:
Quantity Price
1.0 9.12
Cable Size #8 - #4 AWG
600V AC/DC
Up to 150A Continuous
NEMA 3R

FEATURES
  • Double cam principle provides a positive, vibration-proof connection.
  • Self-compensating for wear.
  • No moving contact surfaces, eliminating arcing or burning.
  • Superior electro-mechanical connections.
  • Locked contacts will withstand a pulling force of 1,000 lbs.
  • 1/3 of a turn assures a high pressure contact approaching 600 lbs. per sq. in. providing minimum resistance
  • Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action.
  • Watertight elastomeric insulators molded from colorfast material, color-coded for easy phase identification.
  • Recessed contacts protected by insulating jacket that extends beyond contact ends for safety.
Certifications
  • Listed to UL498
  • CSA certified to C22.2
