High End Systems DMX 8000 Expander
DMX Processor 8000 Expander (Super Duper Widget)
Item #:62040005
Available: In Stock

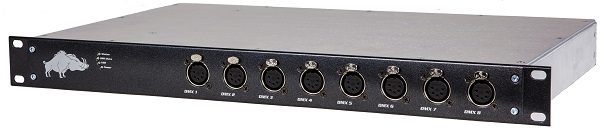

Packaged in a sleek, 19 inch rackmountable package, the DMX Super Duper
Widget provides 8 universes of DMX 512 output from any Hog 4 OS consoles
(except Road Hog 4 where it will only allow 4 universes) and any Hog 4
PC. When used in conjunction with Hog 4PC software, 1 DMX Super Duper
Widget may be connected to provide 8 full universes of DMX 512. This
configuration provides an excellent solution for backup and playback
only applications. By adding Nano Hog 4, Playback Wing 4 and Master Wing
4, users can configure powerful control solutions that precisely suit
their needs and budgets.
You must be logged in to order this item.
Log in here
Log in here
For Hog 4 PC users, attaching the DMX Super Duper Widget also unlocks 8 universes of DMX over Art-Net and E1.3.1 (sACN).
Features
- USB connection to Hog 4, Full Boar 4, Road Hog 4 and Hog 4 PC computers
- Eight DMX 512 outputs on 5-pin XLR connectors
- 4096 channels total output capacity
- Sleek, 19 inch rackmountable package
- Status LEDs for power and data in/out
- Kensington Security Slot
- One USB input connector
