Compulite Vibey

Ultra Compact Lighting Controller
Item #:525-015-LA-10
Available: Special Order/Direct Ship
Vibey is the ultimate compact console. It is just as powerful as the original Vibe, but its only about 72cm wide, 47cm high and 19.5kg weight, therefore it is easier to carry and maneuver. The Vibey combines innovation with convenience, it utilizes the latest Operating System software & computer hardware with Multi-touch screen technologies to provide a totally flexible and dynamic customizable control surface.
16861.69
Each
Quantity:
Quantity Price
1.0 16861.69
Key Features
  • 2 External DisplayPorts 1.4 (can split to 8 FHD Monitors)
  • Multi-color illuminated keypad
  • 8 RGB Backlit high-resolution wheels, 4 general purpose, 4 interactive.
  • 1 vertical wheel for intensity control
  • Backlit XY trackball with 3 dedicate multi-use buttons
  • Dedicated A/B theatre style cross faders
  • Fully customizable and swipable drag and drop Workspace layouts
  • Virtually unlimited multi-touch controllers
  • Multi-angle control surface
  • Full tracking backup
  • 2D topo and graphical on-screen editing
  • Up to 32-bit parameters and virtual parameters
  • RDM support
  • Comprehensive effects engine accessed via graphical editor with multiple primitives, patterns and parameters
  • Up to 256 DMX universes directly from console via network ports
  • PC and Smartphone software
  • Multi language support

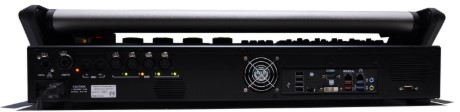

Connections
  • 8 x DMX 512 Inputs / outputs, XLR5
  • 2 x External DisplayPort 1.4
  • 4 x Gigabit Ethernet ports RJ45
  • 4 x USB 3.0, 2 x USB 2.0 ports
  • SMPTE, Combo XLR
  • MIDI in/thru, 5-pin DIN
  • 2 x dimmable RGB LED desk light, XLR3
  • AC input, powerCON
  • Power switch
Hardware
  • 10 paging motorized faders
  • 10 paging multi-use encoders
  • 20 paging multi-use controller buttons
  • 21.5” FHD multi-touch screen
  • Industrial motherboard supporting 9th generation cores
  • Windows 10 Operating System
  • 1 SSD for OS storage
  • 1 SSD for Data storage
  • 32GB RAM
  • Dedicated Graphics NVidia Processor Unit (GPU) card
  • Show backup to internal SSD, USB
  • Compulite VCs, sACN, Art-Net & RDM protocols
  • 8 physical DMX ports expandable to 256 universes via DMX over Ethernet gateways
Interface
  • Exceptionally stable SQL database for data storage
  • Familiar touch commands and gestures
  • Customizable workspaces with drag and drop, re-size and swipe
  • Drag and drop patching
  • Interactive on-screen toolbars with pop-up dialogues
  • On screen interactive editing in live view displays
  • Interactive parameter selection and controls
  • 2D interactive topo view
Dimensions / Weight
  • Length: 28.3in (720mm)
  • Width: 17.5in (445mm)
  • Height (closed): 6.5in (166mm)
  • Height (opened): 18.5in (470mm)
  • Weight: 19.5kg (43.0lb)
