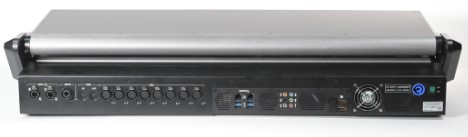

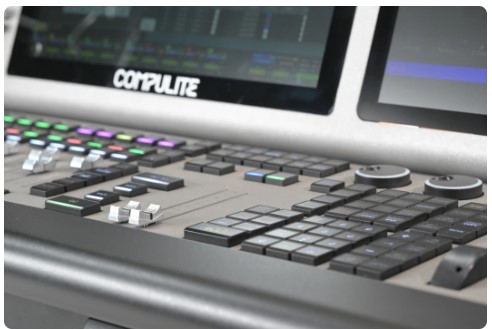

Compulite Vibe M
Compact Lighting Controller
Item #:525-010-LA-10
Available: Special Order/Direct Ship
Vibe M is the ultimate compact console. It is just as powerful as the original Vibe, but is about 15 cm narrower, 7 cm shorter and 7 kg lighter, therefore it is easier to carry and maneuver. Vibe M combines innovation with convenience, it utilizes the latest Operating System software & computer hardware with Multi-touch screen technologies to provide a totally flexible and dynamic customizable control surface.
22487.25
Each
Quantity:
| Quantity | Price |
| 1.0 | 22487.25 |
Key Features
- 2 External DisplayPorts 1.4 (can split to 8 FHD Monitors)
- Multi-color illuminated keypad
- 8 RGB Backlit high-resolution wheels, 4 general purpose, 4 interactive.
- 1 vertical wheel for intensity control
- Backlit XY trackball with 3 dedicate multi-use buttons
- Dedicated A/B theatre style cross faders
- Fully customizable and swipable drag and drop Workspace layouts
- Virtually unlimited multi-touch controllers
- Multi-angle control surface
- Full tracking backup
- 2D topo and graphical on-screen editing
- Up to 32-bit parameters and virtual parameters
- RDM support
- Comprehensive effects engine accessed via graphical editor with multiple primitives, patterns and parameters
- Up to 256 DMX universes directly from console via network ports
- PC and Smartphone software
- Multi language support
- 8 x DMX 512 Inputs / outputs, XLR5
- 2 x External DisplayPort 1.4
- 4 x Gigabit Ethernet ports RJ45
- 4 x USB 3.0, 2 x USB 2.0 ports
- SMPTE, Combo XLR
- MIDI in/thru, 5-pin DIN
- 2 x dimmable RGB LED desk light, XLR3
- AC input, powerCON
- Power switch
Hardware
- Built-in 15.6” plus 11.6” Full HD multi-touch screens
- 15 paging motorized faders
- 30 individually paging multi-use controller buttons
- Industrial motherboard supporting 9th generation cores
- Windows 10 Operating System
- 1 SSD for OS storage
- 1 SSD for Data storage
- 32GB RAM
- Dedicated Graphics NVidia Processor Unit (GPU) card
- Show backup to internal SSD, USB
- Compulite VCs, sACN, Art-Net & RDM protocols
- 8 physical DMX ports expandable to 256 universes via DMX over Ethernet gateways
- Exceptionally stable SQL database for data storage
- Familiar touch commands and gestures
- Customizable workspaces with drag and drop, re-size and swipe
- Drag and drop patching
- Interactive on-screen toolbars with pop-up dialogues
- On screen interactive editing in live view displays
- Interactive parameter selection and controls
- 2D interactive topo view
Dimensions / Weight
- Length: 34.7in (882mm)
- Width: 17.1in (436mm)
- Height (closed): 6.1in (155mm)
- Height (opened): 15.5in (396mm)
- Weight: 50.2lb (22.8kg)
