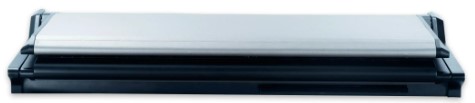

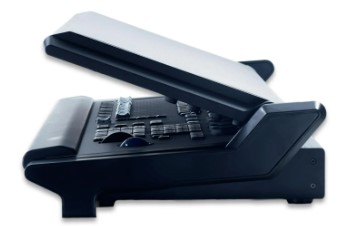

Compulite Vibe
Lighting Controller
Item #:525-005-LA-10
Available: Special Order/Direct Ship
Vibe is a totally fresh concept in lighting control. Compulite wiped the slate clean and developed a system to cater to the performances and complex needs of today’s lighting professionals. Vibe utilizes the latest Operating System software & computer hardware with Multi-touch screen technologies to provide a totally flexible and dynamic customizable control surface.
28487.85
Each
Quantity:
| Quantity | Price |
| 1.0 | 28487.85 |
Key Features
- 2 External DisplayPorts 1.4 (can split to 8 FHD Monitors)
- Multi-color illuminated keypad
- 8 RGB Backlit high-resolution wheels, 4 general purpose, 4 interactive.
- 1 vertical wheel for intensity control
- Backlit XY trackball with 3 dedicate multi-use buttons
- Dedicated A/B theatre style cross faders
- Fully customizable and swipable drag and drop Workspace layouts
- Virtually unlimited multi-touch controllers
- Multi-angle control surface
- Full tracking backup
- 2D topo and graphical on-screen editing
- Up to 32-bit parameters and virtual parameters
- RDM support
- Comprehensive effects engine accessed via graphical editor with multiple primitives, patterns and parameters
- Up to 256 DMX universes directly from console via network ports
- PC and Smartphone software
- Multi language support
- 8 x DMX 512 Inputs / outputs, XLR5
- 2 x External DisplayPort 1.4
- 4 x Gigabit Ethernet ports RJ45
- 4 x USB 3.0, 2 x USB 2.0 ports
- SMPTE, Combo XLR
- MIDI in/thru, 5-pin DIN
- 2 x dimmable RGB LED desk light, XLR3
- AC input, powerCON
- Power switch
Hardware
- 21.5” + 11.6” FHD multi-touch screens
- 15 paging motorized faders
- 35 paging multi-use controller buttons
- 5 general purpose faders
- Industrial motherboard supporting 9th generation cores
- Windows 10 Operating System
- 1 SSD for OS storage
- 1 SSD for Data storage
- 32GB RAM
- Dedicated Graphics NVidia Processor Unit (GPU) card
- Show backup to internal SSD, USB
- Compulite VCs, sACN, Art-Net & RDM protocols
- 8 physical DMX ports expandable to 256 universes via DMX over Ethernet gateways
- Exceptionally stable SQL database for data storage
- Familiar touch commands and gestures
- Customizable workspaces with drag and drop, re-size and swipe
- Drag and drop patching
- Interactive on-screen toolbars with pop-up dialogues
- On screen interactive editing in live view displays
- Interactive parameter selection and controls
- 2D interactive topo view
Dimensions / Weight
- Length: 40.2in (1021mm)
- Width: 17in (423mm)
- Height (closed): 6.1in (155mm)
- Height (opened): 18in (458mm)
- Weight: 60.0lb (26.7kg)
