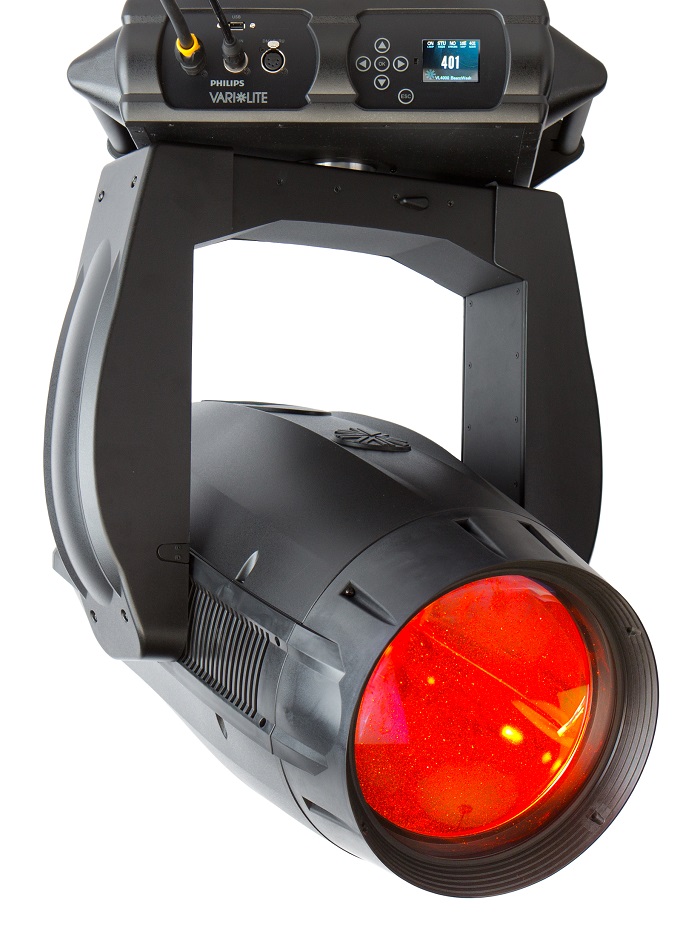

Vari-Lite VL4000 BeamWash

1200W Discharge CYM Beam-Wash Luminare
Item #:20.9704.0002
Available: Special Order/Direct Ship
The VL4000 BeamWash follows on the success of the VL4000 Spot by providing designers, rental companies, venues and productions with a multi-purpose luminaire offering further unlimited possibilities without compromises. Sharing many of the VL4000 Spot design principles, the VL4000 BeamWash combines stunning wash capabilities with intense beam functionality as well as the ability to produce a powerful collimated shaft of light. Now, one single unit can serve multiple uses without changing lenses or adding additional fixtures. Complete with low ambient noise, high lumen output, and amazing optics, the VL4000 BeamWash is the perfect luminaire for wash, beam, and shaft looks on any stage.
You must be logged in to order this item.
Log in here
Programmable Functions
Color System: A three filter CYM cross fading system capable of extremely smooth movements
at both slow and fast speeds, and a variable CTO color temperature correction system.

Fixed Color Wheels:
Two opposing fixed color wheels each with five interchangeable color filters are
capable of producing multi-color effects and variable wheel rotations.

Wash Mode:

Wash Zoom Optics: A 6-element 6:1 zoom optics system, covering a range from 10° to 60°.
Beam Shaping: Unique indexing and rotating beam shaping alters output from round to elliptical with
minimal light loss.
Edge and Hot Spot Control: Variable hot spot/ edge adjustment provides a multitude of different wash styles.

Beam Mode:

Beam Zoom Optics: A 6-element 10:1 zoom optics system, covering a range from 4° to 40°.

Beam Size Control:
A mechanical iris provides continuous beam size control for rapid and smooth timed beam
angle changes. Zero degree beam angle is possible with nearly fully closed iris.

Rotating Gobo Wheels:
Two gobo wheels combine to each offer seven rotatable, indexable gobo positions and one
open position.

Animation Wheel:
A dynamic animation wheel offers unique rotatable, indexable patterns with variable motion
control from horizontal to vertical.

Rotating Prism:
Independent rotating and indexing 5-facet step prism.

Lenticular Effect:
Unique indexing and rotating lenticular effect alters output from round to rectangular and to
create extruded gobo imagery.

Edge and Pattern Focus:
Variable beam focus to soften edges of gobos or spots. Remarkable depth of field capability
allows morphing effects between gobos and the animation wheel.

Shaft Mode:


Shaft Optics:
4° adjustable to near 0° with iris.

Beam Size Control:
A mechanical iris provides continuous beam size control for rapid and smooth timed beam
angle changes.

Rotating Gobo Wheels:
Two gobo wheels combine to each offer seven rotatable, indexable gobo positions and one
open position.

Animation Wheel:
A dynamic animation wheel offers unique rotatable, indexable patterns with variable motion
control from horizontal to vertical.

Rotating Prism:
Independent rotating and indexing 5-facet step prism.

Lenticular Effect:
Unique indexing and rotating lenticular effect alters output from round to rectangular and to
create extruded gobo imagery.

Edge and Pattern Focus:
Variable beam focus to soften edges of gobos or spots. Remarkable depth of field capability
allows morphing effects between gobos and the animation wheel.

Intensity Control:
Full field dimming designed for smooth timed fades as well as quick dimming effects.
Strobe: High-performance dual blade strobe system capable of ultra-fast operation.

Pan and Tilt:
Smooth, time-controlled continuous motion by way of three-phase stepper motor systems.
Range: Pan - 540°, Tilt - 270° / Accuracy: 0.3° resolution.

Description

  • Source: 1200W Philips MSR Gold FastFit lamp (rated for 800-1400W operation) running at 1400W
  • in Standard mode or 1200W in Studio mode.
  • Color Temperature: 6000K
  • Fixture Output: Standard Mode: 43,000 lumens
  • Studio Mode: 35,000 lumens
  • Reflector: Precision glass reflector system with dichroic cold mirror coating.
  • Power Requirements: Standard AC power distribution from 200 - 240VAC, 50/60 Hz. The unit requires up to
  • 11.0 A depending on the AC supply voltage.
  • Menu System: Full color LCD with battery powered control.
  • Operational Temperatures: Standard Mode: -20° to 104°F (-29° to 40°C)
  • Studio Mode: -20° to 122°F (-29° to 50°C)
  • Cooling: Forced air cooling.
  • DMX Control: Completely compatible with a wide variety of DMX512 consoles.
  • DMX Channels: 46 Channels (Enhanced 16-Bit Mode) / 41 Channels (16-Bit Mode)
  • RDM Control: Completely compatible with a wide variety of RDM devices.
  • Mounting Position: The VL4000 Spot luminaire can be mounted and operated in any orientation and includes
  • multiple mounting bracket options.
  • Spacing / Weight: Hangs on 30 in. (76.2 cm) centers / 101 lbs (45.8 kg)
