Phase 3 Showsafe 190076
7 Pin Panel Mount, Female, Solder
Item #:190076
Available: In Stock

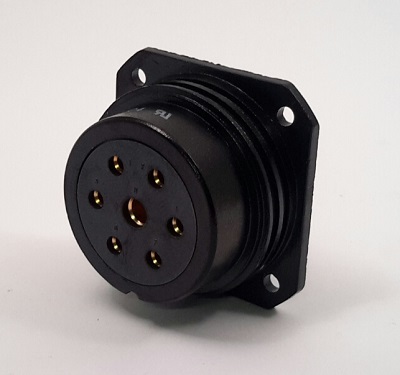

Phase 3 Showsafe 7 pin panel mount female Socapex compatible connector, Solder contacts - Black chassis, blue insert.
Contact us to order
PRODUCT FEATURES:
In addition to the following features, the Showsafe connectors CSL sells feature BLACK LOCKING RINGS on male connectors and BLUE INSERT that holds contact pins.
In addition to the following features, the Showsafe connectors CSL sells feature BLACK LOCKING RINGS on male connectors and BLUE INSERT that holds contact pins.
- Socapex SL 419 Compatible
- High Impact all machined shells
- Wear resistant anodised finish
- Easy grip, heavy duty coupling ring (various colours)
- Thick wall section backshells (with locking screws)
- Integral insulation sleeves
- M40 metric cable glands (with bushing for lighting cables)
- Inserts marked with lighting circuit wiring
- IP67 when mated
- First Mate Last Break Earth Contacts
- Multipoint gold plated contacts (solder or crimp)
- ROHS Compliant
- UL and cUR listed
TECHNICAL PARAMETERS:
- Voltage rating: 700VDC, 500VAC
- Current rating: 41A max, 25A rated
- Temperature rating: -55°C to +125°C
- Contact plating: gold
