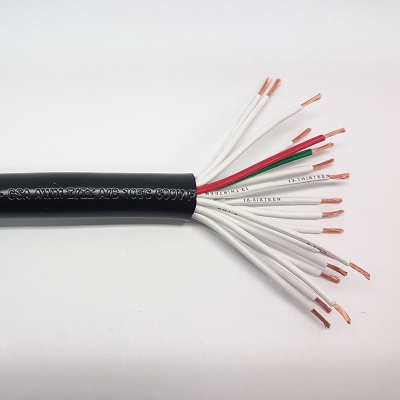

Dura-Flex 16/18-2586

16 AWG / 18 Conductor Multi-Cable
Item #:16/18-2586
Available: In Stock

Dura-Flex 16 Gauge / 18 Conductor UL Listed, 1000V, AWM Style 20886 Multi-Cable

Dura-Flex 16/18 Cable was originally made to withstand the Rigors of the Road for the Entertainment industry. Its Flexibility, Numerous Safety Certifications and Robustness also make it an ideal Robotics cable. This pricing is below wholesale as we are Clearing it out.

1.53
Foot
Quantity:
Quantity Price
1.0 1.53

Dura-Flex 16/18 Cable was originally made to withstand the Rigors of the Road for the Entertainment industry. Its Flexibility, Numerous Safety Certifications and Robustness also make it an ideal Robotics cable. This pricing is below wholesale as we are Clearing it out.

Product Description

A Sixteen (16) Gauge - Eighteen (18) Conductor - Bare Copper With PVC Insulation , Reverse Planetary Laid, Rugged, Oil Resistant, PVC Jacketed , Yet Highly Flexible Instrumentation Cable.

Conductor Data

  • Material: Bare Copper
  • Gauge: 16 AWG
  • Stranding: 26 x 30

Insulation Data

  • Material: Polyvinylchloride
  • Nominal Wall Thickness: .022"
  • Diameter (primary): .103"

Cabling Data

  • Number Of Conductors: 18
  • Conductor Identification
    • Conductor 1: Red, No Number
    • Conductor 2–17: White, Black Number
    • Conductor 18: Green
  • Center Filler: Polyvinylchloride / Black
  • O/A: Tissue Tape

Conductor Arrangement Is Directly Compatible With Phase 3, SOCAPEX And VEAM VSC Connectors.

Jacket Data

  • Material Color: Polyvinylchloride (Oil Resistant)
  • Color: Black
  • Markings: White Lettering, Also Indendted
  • Nominal Wall Thickness: .075"
  • Diameter (O.D.): .675"
  • Legend: DURA-FLEX 16AWG 18/C RU AWM STYLE 20886 1000V 105C VW–1 E167231- B —- CSA II/A/B 105C 600V FT1 234943 CE ROHS (DSC SEQ FT) TESTED FOR OIL RESISTANCE I/II + IMPACT AND CRUSH TO 1277 STANDARD

Product Ratings

  • Weight: .35lbs/ft
  • Temperature Range: –20ºC to 105ºC
  • UL Approval: RU AWM STYLE 20886 1000V 105C
  • CSA Approval: CSA AWM IIA/B 105C 600V FTI
  • RoHS: RoHs Compliant
  • REACH: Reach 2007 Compliant
