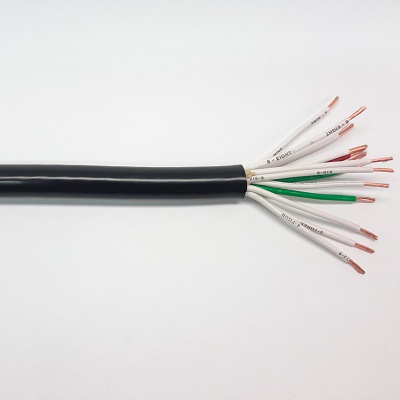

Dura-Flex 14/14-2586

14 AWG / 14 Conductor Multi-Cable
Item #:14/14-2586
Available: In Stock

Dura-Flex 14 Gauge / 14 Conductor UL Listed, 1000V, AWM Style 20886 Multi-Cable

Dura-Flex 14/14 Cable was originally made to withstand the Rigors of the Road for the Entertainment industry. Its Flexibility, Numerous Safety Certifications and Robustness also make it an ideal Robotics cable. This pricing is below wholesale as we are Clearing it out

2.56
Foot
Quantity:
Quantity Price
1.0 2.56

Dura-Flex 14/14 Cable was originally made to withstand the Rigors of the Road for the Entertainment industry. Its Flexibility, Numerous Safety Certifications and Robustness also make it an ideal Robotics cable. This pricing is below wholesale as we are Clearing it out.

Featuring premium grade PVC compounds, a unique reverse planetary lay, paper tape slipping agent and technologies from the robotics industry, Dura-Flex multi-cables and assemblies are the industry leader for ease of handling, safety, and value.

Conductor Arrangement Is Directly Compatible with Phase 3, Socapex and Veam VSC 19 Pin Connectors.

Product Description:

A fourteen (14) Gauge -- Fourteen (14) Conductor -- Bare Copper with PVC Insulation, Reverse Planetary Laid, Rugged, Oil Resistant, PVC Jacketed, Highly Flexible Multi-Conductor Cable.

Conductor Data:

  • Material - Bare Copper Gauge 14 AWG Stranding 65 x 30
Insulation Data:
  • Material - Polyvinylchloride
  • Nominal - Wall Thickness .022"
  • Diameter - (primary) .130"
Cabling Data:
  • Number of Conductors -14
  • Conductor Identification -
Cond. 1 - Red, No Number
Cond. 2 thru 12 - White, Black Numbering
Cond. 13 - Green
Cond. 14 - Green with Yellow Stripe
O/A Tissue Tape

Jacket Data:
  • Material - Polyvinylchloride (Oil Resistant)
  • Color - Black
  • Markings - White Lettering
  • Nominal Wall Thickness - .080"
  • Diameter (OD) - .668"
  • Legend - DURA-FLEX 14AWG 14/C RU AWM STYLE 20886 1000V 105C VW-1 E167231- B -- CSA II/A/B 105C 600V FT1 234943 CE ROHS (DSC SEQ FT) TESTED FOR OIL RESISTANCE I/II + IMPACT AND CRUSH TO 1277 STANDARD
Product Ratings:
  • Wt. / M feet (Nominal) - 345 lbs./ 1M feet (.345 lbs./ft.)
  • Temperature Range -20°C to 105°C / 90°C / 75°C
  • Voltage - 1000 Volts / 600 Volts
Approvals:
  • UL Approval - RU AWM STYLE 20886 1000V 105C
  • CSA Approval - CSA AWM IIA/B 105C 600V FT1
  • RoHS Compliant
  • REACH 2007 Compliant
