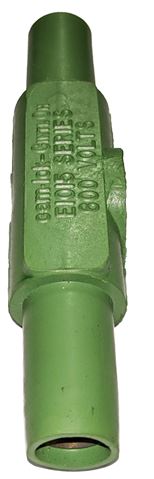

Cam-Lok E1015
Double Female Coupler, Green
Item #:E1015-2356
Available: In Stock
Cam-Lok J-Series E1015, double female coupler, green, female-female
23.53
Each
Quantity:
| Quantity | Price |
| 1.0 | 23.53 |
Cable Size #8 - #4 AWG
600V AC/DC
Up to 150A Continuous
NEMA 3R
FEATURES
600V AC/DC
Up to 150A Continuous
NEMA 3R
FEATURES
- Double cam principle provides a positive, vibration-proof connection.
- Self-compensating for wear.
- No moving contact surfaces, eliminating arcing or burning.
- Superior electro-mechanical connections.
- Locked contacts will withstand a pulling force of 1,000 lbs.
- 1/3 of a turn assures a high pressure contact approaching 600 lbs. per sq. in. providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action.
- Watertight elastomeric insulators molded from colorfast material, color-coded for easy phase identification.
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety.
Certifications
- Listed to UL498
- CSA certified to C22.2
