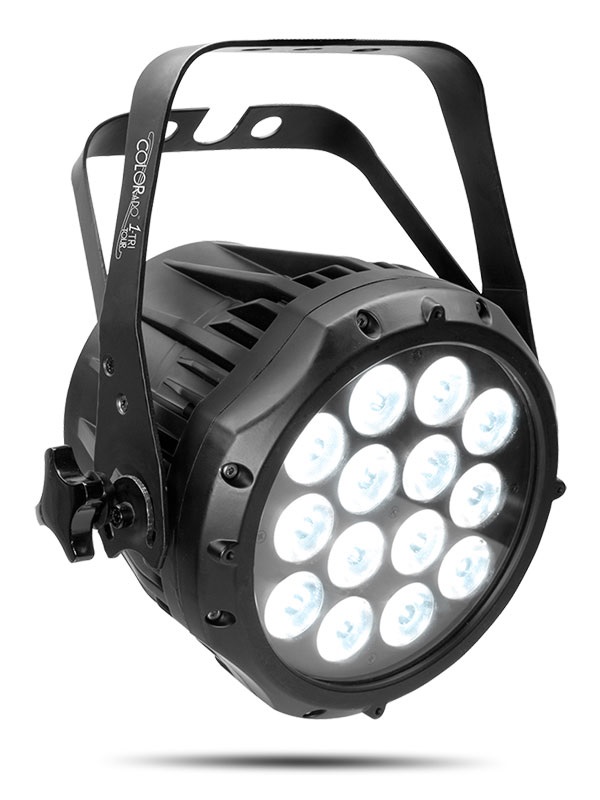

Chauvet Colorado 1-Tri Tour

RGB LED Static Wash Fixture
Item #:COLORADO 1-TRI TOUR
Available: Special Order/Direct Ship
COLORado 1-Tri Tour mirrors the Colorado 1-Tri IP's architecture but is built just for indoor use, which allows the incorporation of Neutrik® powerCON® connectors for a speedier and easier setup. Specially designed optics make the light from the LEDs converge before leaving the fixture, ensuring even better color mixing. Selectable dimming curves and optional color blending filters further enrich the performance of this excellent, road-tested wash. COLORado 1-Tri Tour also includes an attachable gel frame holder.
You must be logged in to order this item.
Log in here

Specifications

Optical

  • Light Source: 14 LEDs (tri-color RGB) 3 W, (700 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K
  • Beam Angle: 15°
  • Field Angle: 28°
  • Illuminance (total): 806 lux @ 5 m
  • PWM Frequency: 900 Hz

Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 8
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes

Construction / Physical

  • Dimensions: 8 x 9.7 x 9.5 in (202 x 246 x 242 mm)
  • Weight: 8.8 lb (4 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

Connections

  • Power Connection: Edison plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Cable Length: 5 ft (1.5 m)

Control

  • Control Protocol: DMX
  • DMX Channels: 3, 4, 5, 9 or 13
  • Modes/Personalities: 6 personalities (ARC.1, HSV, AR1.D, AR1.S, TR16, TOUR)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 14 units @ 120 V; 24 units @ 208 V; 26 units @ 230 V
  • Power and Current: 87 W, 0.73 A @ 120 V, 60 Hz
  • Power and Current: 91 W, 0.44 A @ 208 V, 60 Hz
  • Power and Current: 93 W, 0.40 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP20

What's Included

  • COLORado 1-Tri Tour
  • Neutrik powerCON power cord
  • Gel frame holder (7.5 in/191 mm accessories)
  • Gel frame
