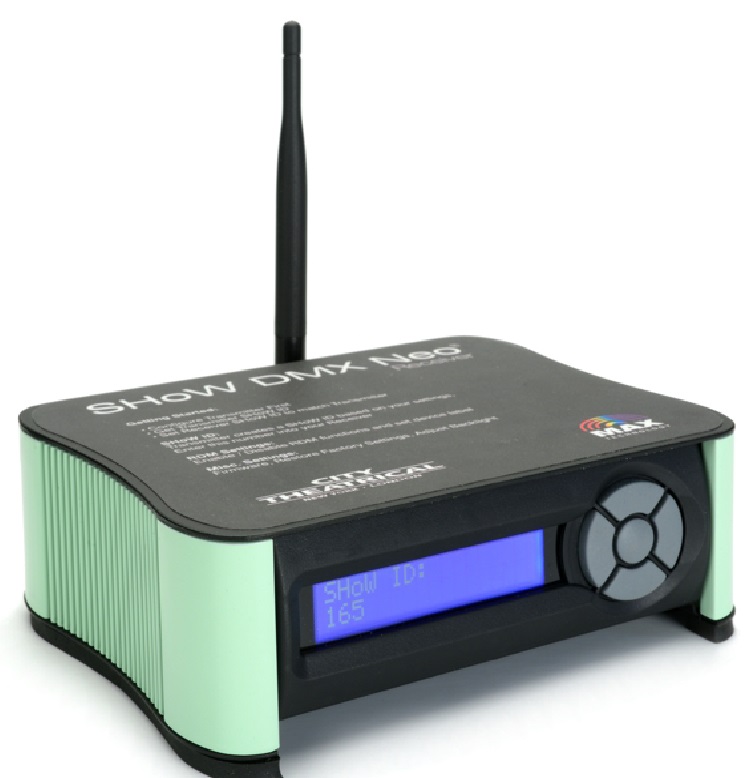

City Theatrical 5711M

Show DMX Neo Wireless Tranceiver
Item #:5701M
Available: Special Order/Direct Ship
New Maximum Bandwidth Technology allows SHoW DMX to change from Frequency Hopping to Wide Band Digital Modulation, which allows it to narrow its output to smaller areas of the 2.4GHz spectrum, such as Wi-Fi channel 14 where (in the U.S.) no Wi-Fi broadcast takes place.  This allows SHoW DMX to avoid all Wi-Fi interference in an otherwise saturated spectrum. No other wireless DMX system can make this claim. This is accomplished simply by selecting a SHoW ID on the user interface or via RDM.
You must be logged in to order this item.
Log in here
SHoW DMX Neo Mode
o DMX Synchronized Hopping
o Low Latency
o User selectable Maximum, Full, and Limited Bandwidth
o User selectable Full or Limited Burst
o User selectable Output Power
o Lost Data Replacement
o Advanced High Speed RDM functions
o Supports reduced DMX slot frames for higher refresh rates
SHoW DMX Neo Adaptive Mode
o DMX Synchronized Hopping
o Adaptive Frequency Hopping
o Low Latency
o Adaptive Modified Full Bandwidth
o User selectable Output Power
o Lost Data Replacement
o Advanced High Speed RDM functions
o Supports reduced DMX slot frames for higher refresh rates RDM Features
  • Supports any RDM controller or RDM enabled console
  • Fast and reliable wireless RDM Proxy and Responder functions
Electronic / Functional Features
  • DMX in and out via Neutrik 5P XLRs
  • USB Port
  • User Interface
  • Five button Keypad
  • LCD Screen
Dual Power Input
  • 100-240 VAC 3W 50/60 Hz Mains Input via IEC C-14 Inlet
  • 12-24VDC 3W Input via 5.5mm DC Power Jack
Construction: NEMA 1 / IP 20 Steel and Aluminum enclosure Compliance
  • CE Certified
  • IC Certified SHoW DMX Neo Radio Module
  • FCC Certified
  • RoHS Compliant
  • ETL Listed
